Efficient Impact Transfer on Bio Tissues in Wet Contact by the Water Clarified in Tube Condition Volume 65- Issue 2

Juhani Pylkkanen*

• Chief Engineer SansOx Ltd, Switzerland

Received: April 07, 2026; Published: April 20, 2026

*Corresponding author: Juhani Pylkkanen, Chief Engineer SansOx Ltd, Switzerland

DOI: 10.26717/BJSTR.2026.65.010180

Abstract PDF

The natural water cycle is the largest transportation system and the major climate cooling element together with photosynthesis and wind powered by the sun. Water is a pure substance that picks and carries a huge load during its natural cycle on the earth, in the bio systems, in washing and cleaning, in medical care as well as in agriculture, power generation and industrial processes. It gets rid of the load by evaporation powered by the sun and wind, and leaves the civilization waste in the waters. The eco systems suffer increasing amount of toxins, drug and pharmaceutical residues, nutrients, various chemicals, micro plastics, resistive microbe growth, unbalanced algae, and low oxygen. Water evaporation as well as photosynthesis and related cooling capacity have been shrunk significantly by extension of the civilization. It’s urgent to refresh waters and food chains as well as to improve wastewater treatment so that it can be sprayed on ground, plants, roofs and walls as well as on photo voltaic panels and other similar heat sources for evaporated climate cooling. It’s beneficial to switch heat sources to combined power generation and climate cooling. OxTube, a new water treatment innovation clarifies water matrices in tube condition with nature respect within seconds by four seamless phases as follows; separation of dissolved substances, activation of molecules, clarification and dissolving of desirable substances.

It separates and removes dissolved gases like radon, carbon dioxide, hydrogen sulfide and hydrocarbon, chemicals like drug and pharmaceutical residues, and dissolved solids like iron, manganese compounds, calcium, fluorine and phosphorus. Efficiency of the versatile clarification is based on kinetic energy of the flow, even mixing and high collision probability of molecules in hermetic tube condition. Water is able to transfer positive as well as negative impacts in to bio systems. Health and wellness impacts of dissolved air on bio tissues in wet contact were identified during the research and test runs of the new water clarification innovation. Comparable iron gets rusted right away in this clarified and aerated water but it could take years in dry air. Wet food spoils instantly, but dried food can be stored for years in dry condition. Wanted health recovery impact can be transferred on and in bio tissues by dissolving desirable substances in the water at the same time with clarification and disinfection.

Keywords: Water Clarification; Water Purification; Water Treatment; Water Oxygenation; Particle Separation; Tube Flotation; Pharmaceutics Removal; Toxins Removal; Radon Removal; Water Disinfection; Combined Water Clarification; Impact Transfer in Wet Contact

The natural water cycle is the world’s largest transportation system and the major climate cooling element together with photosynthesis and wind powered by the sun. Water is a pure substance that carries a huge load during its cycle on the earth, in the bio systems, in washing and cleaning, in medical care as well as in agricultural and industrial processes. Water gets rid of the load by evaporation powered by solar heat and wind, and leaves it in the ponds, lakes and seas. The waters and eco systems suffer increasing amount of toxins, drug and pharmaceutical residues, nutrients, various poisons, many other chemicals, micro plastics, and unbalanced microbe growth, algae and low oxygen. A lot of water evaporation cool has lost by extension of civilization, open area building and construction, and underground sewerage systems. The civilization heat sources can be turned to climate cooling by the proper water treatment and buffering, large area water evaporation and photosynthesis [1]. Just giving an example, low efficient photo voltaic panels could be cooled and their efficiency enhanced by evaporation of clarified wastewater on panel surfaces, so electricity can be generated and the climate cooled at the same. Waste heat of the power plants and data centers could be switched on evaporative coolers as well. Hybrid and decentralized waste water treatment should be carefully considered instead of centralized one with good reason [2]. Further, combined water systems and energy generation would provide huge economic benefits, too.

Water is able to transfer positive as well as negative impacts in to bio systems in wet contact [3,4]. Positive health and wellness impacts of dissolved air on bio tissues were identified first during the research and test runs of the water treatment technology integrated in a hydro turbine. Regarding interaction in the wet contact iron gets rusted immediately in this clarified and aerated water but it could take years in dry air. Wet food spoils instantly, but dried food can be stored for years in dry condition. Wanted health recovery impact can be transferred on and in bio tissues by dissolving desirable substances in the water at the same time with clarification and disinfection.

OxTube Integrated water clarification in tube condition, related devices, some practical case studies and some combined treatment practices are presented here [5-7]. The clarification in tube consists of four seamless treatment phases and as the fifth step a firm gas bubble generation in the flow as follows:

1. Separation of dissolved substances
2. Activation of molecules
3. Immediate clarification reactions
4. Replacement dissolving
5. Bubble generation in water flow for combined flotation and clarification

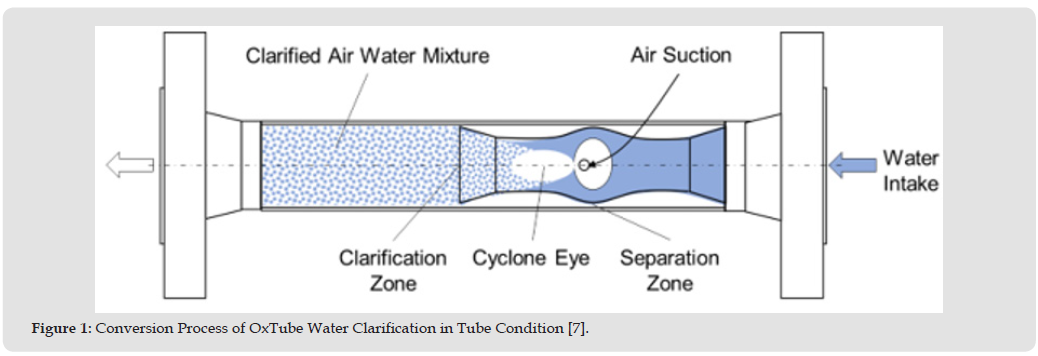

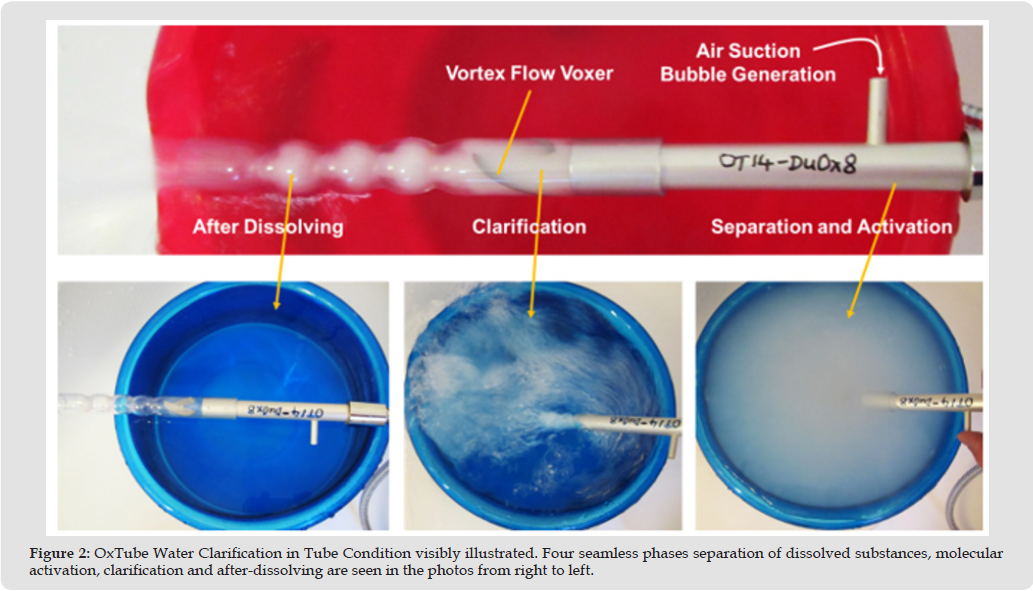

Figure 1 describes the conversion process of OxTube Water Clarification in tube condition [7]. Figure 2 illustrates OxTube Integrated Water Clarification visibly. Separation of dissolved substances and molecular activation are performed in the DuOx Nozzel just before the gas suction and feed. Desirable clarification reactions are initiated immediately after the cyclone eye caused by the split water flow. Gas like air is fed in the cyclone eye by suction without additional energy. The air flow in to the water by the free suction could be over ten times of water in volume. So, the flow speed increases and density of the air water mixture reduces respectively, too. Amount of gas and bubbles can be managed simply by valve control. However, particles start to attach on bubbles already in OxTube and the following tubes by flotation that is beneficial in the flotation systems. Further, viscosity of the air water mixture is much lower than water has, and dynamic pressure increases by the factor of flow speed to the power of two. This results high conversion efficiency and low losses by means of water mass flow. Bubbles mixed in water can be used for reduction of water resistance in piping and in ship cruising [8]. Figure 3 shows separation and clarification efficiency of OxTube Clarification in case of a household water. Iron content over the standard limit was identified visibly in this case. OxTube is used for iron removal with sand filtering, and Ca removal with CO₂ feed and lamella.

Figure 1

Figure 2

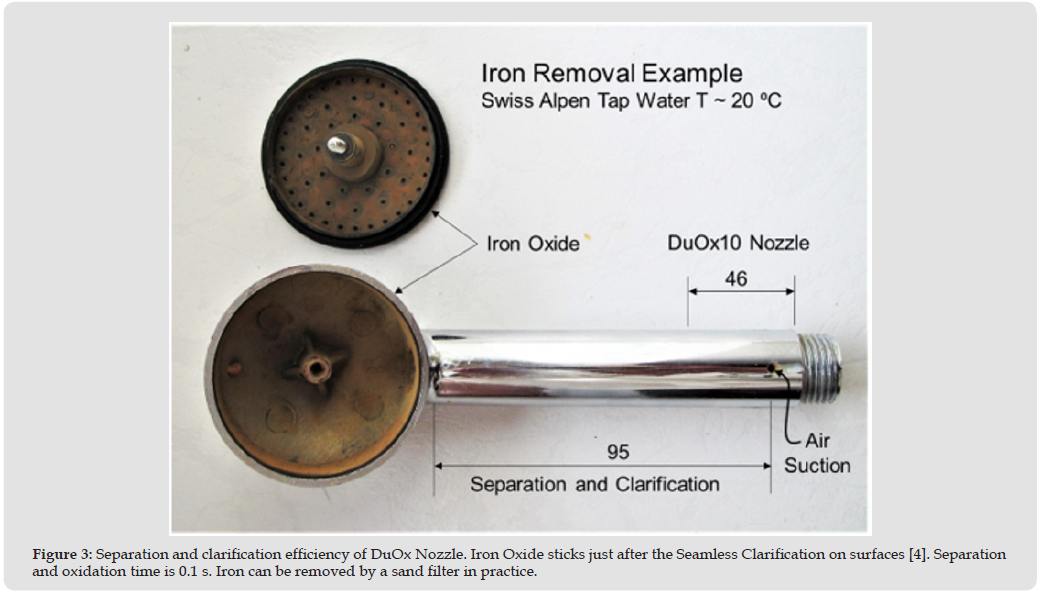

Figure 3

Figure 4

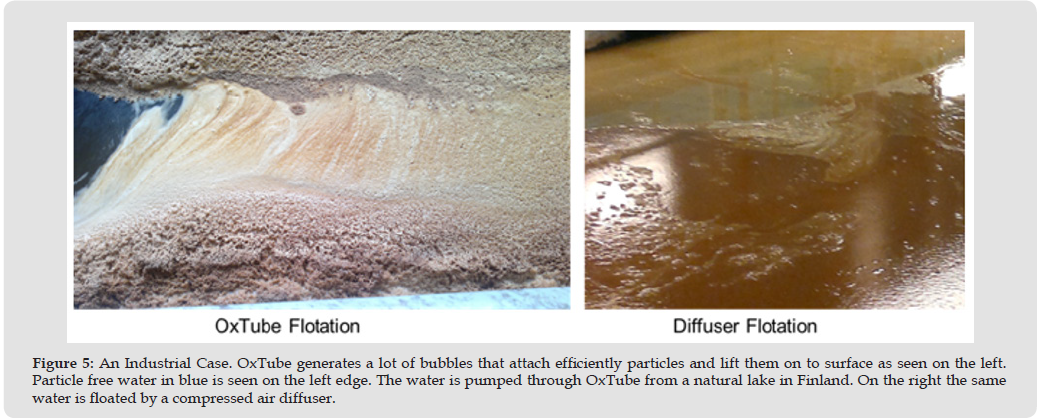

Figure 5

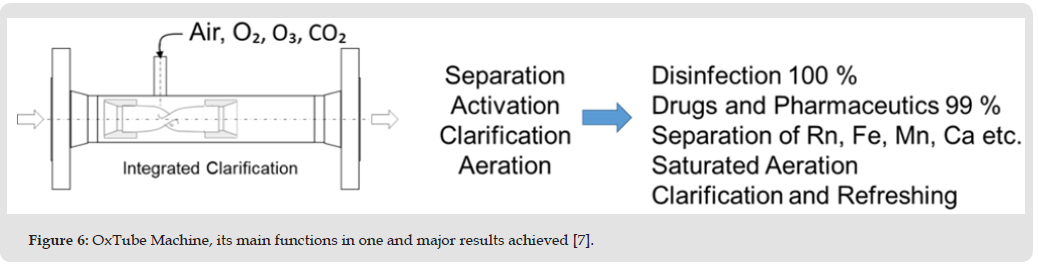

Figure 6

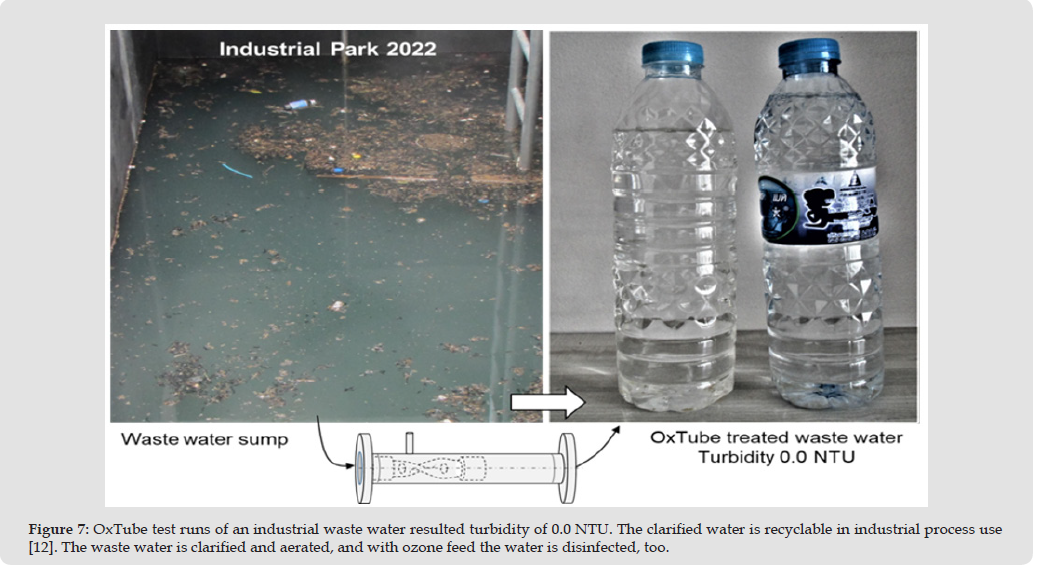

Figure 7

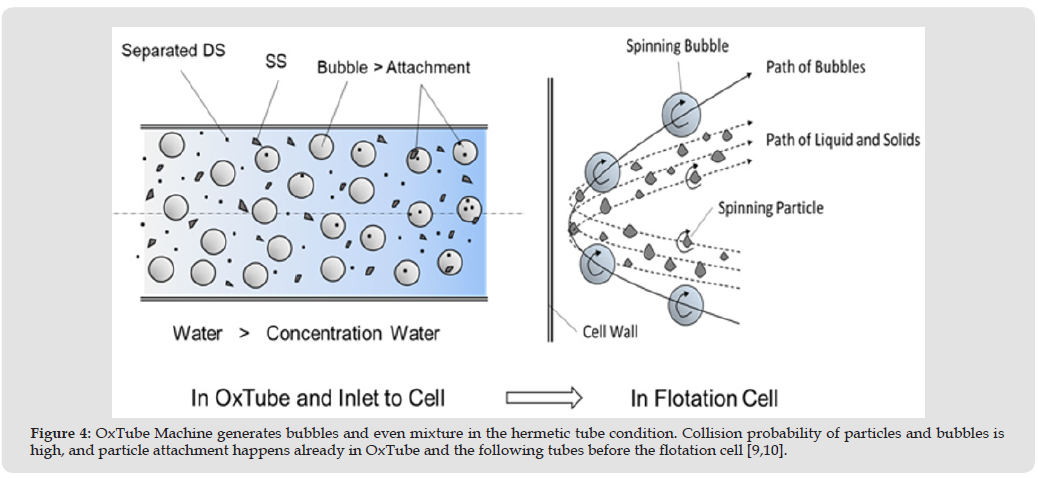

OxTube generates a lot of bubbles, even mixture of water and bubbles and an efficient particle attachment in the tube condition as illustrated in Figure 4 [9,10]. Collision probability of particles and bubbles is high following with great particle attachment. The mixture of bubbles, attached particles and water is led in a simple open vessel, and the foam of bubbles and particles on the water surface is wiped out. Further, the particle attachment can be easily enhanced by a vortex flow in the simple flotation cell [9,10]. Water clarification, disinfection, oxygenation and particle removal by flotation can be combined by feeding mixture of ozone and air through the OxTube Machine. Capital and operational costs are reduced significantly. Figure 5 illustrates visibly efficiency of the Tube Flotation and its great potential to clarify various waters. The brown foam flouted just by OxTube aeration of the intake water from a lake in Finland. Clarified water can be seen on the left edge in blue. Flotation performance of a modern diffuser is seen on the right with the same lake water. Figure 6 presents major combined clarification functions of OxTube Machine, and results achieved in brief. OxTube Clarification is easy to integrate in several water systems like described in [8,10,11]. Figure 7 illustrates an example of some industrial case studies that resulted turbidity of 0.0 NTU by one run of the industrial wastewater through OxTube with air suction [12].

Disinfection of various water matrices including communal and hospital waste water can be disinfected by feeding ozone instead of air [3,5]. Table 1 presents results in the case of disinfection of a hospital waste water. Microbe reduction of 100 percent was achieved together with clarification and oxygenation of over 20 mgO₂/l. Ozone residues were measured negligible. Over 60 percent reduction on bacteria and viruses was achieved only with air suction and one through run [3,5]. Pharmaceutical and drug residues are a fast growing disaster in natural waters and ground. In purified waste water outtake of a city waste water plant 35 pharmaceutical and 7 chemical residues were found [5,6,13] and led continuously to waters nearby. These toxins are said to be little or even negligible but the fact is amount of the toxin residues all over is increasing and becoming dangerous for the nature balance. OxTube efficiency in removal of pharmaceutical residues from the city waste water can be seen in Table 2. About 90 percent of these 35 various residues were separated, split, activated, clarified and removed only by one run through OxTube Machine with ozone feed within 0.5 second in to an open vessel without any filters [5,6]. Two runs result 99 percent reduction of these drug and pharmaceutical residues including 7 chemicals identified. The city waste water was clarified, disinfected and oxygenated at the same time with removal of the drugs and chemicals. The present waste water purification systems in the comparable tests separated and removed less than 20 percent of the residues which can’t be seen acceptable.

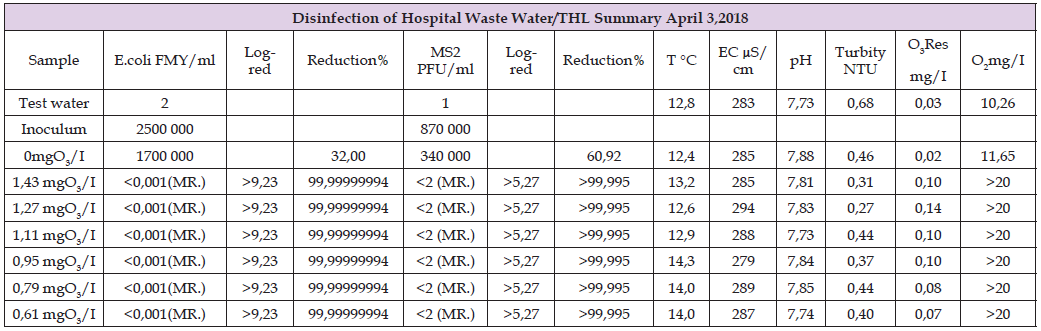

Table 1: Disinfection efficiency of the Integrated Water Clarification of OxTube: 100 % Reduction of E. coli and MS2 achieved with O3 feed of 2 l/min within 0.7 second, oxygen concentration raised over 20 mgO₂/l and negligible ozone residues measured / Savonia University of Applied Sciences in Kuopio [5,3].

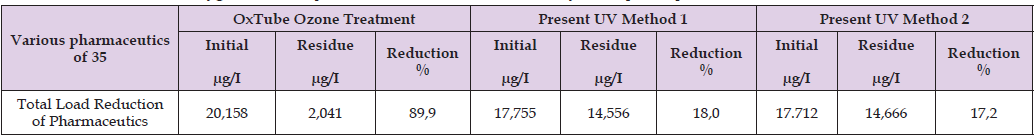

Table 2: Brief Summary on Removal of 35 pharmaceutics from the purified city waste water of Kuopio Finland with OxTube Combined Clarification, Disinfection and Oxygenation compared to two advanced treatment systems [6,4,13].

Reduction of the following pharmaceutical residues was measured higher than 95 percent in one through run of 0.5 second:

• Cetirizine C₂₁H₂₅N₂ClO₃     9 percent
• Diclofenac C₁₄H₁₁NCl₂O₂      7 percent
• Losartan C₂₂H₂₃N₆ClO      6 percent
• Furosemide C₁₂H₁₁N₂ClO₅S      0 percent
• Citalopram C₂₀H₂₁N₂FO      0 percent
• Piperacillin C₂₃H₂₇N₅O₇S      0 percent
• Mirtazapine C₁₇H₁₉N₃      4 percent
• Quetiapine C₂₁H₂₅N₃O₂S      0 percent

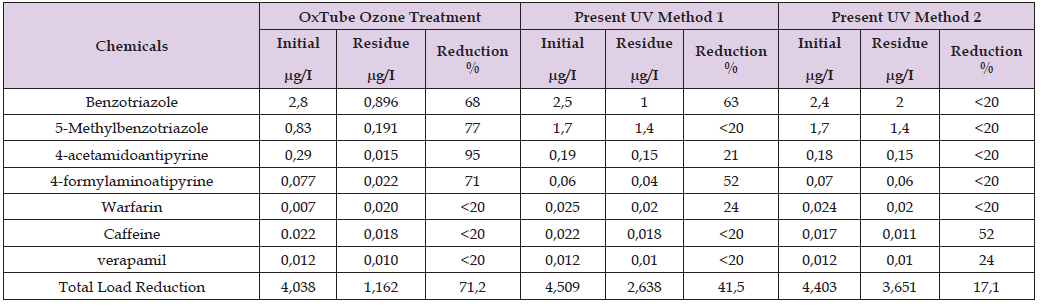

Table 3 shows a comparison of OxTube to two modern clarification systems based on the tests performed at Savonia University of Applied Technology. OxTube removed these substances of 71 percent within 0.5 second without any filters. Two through runs might result over 90 percent reduction within one second together with disinfection, clarification and oxygenation. There are many chemicals used decades and led in to the nature and food chains like DDT, aldrin, chlordane, chloroform, bromoform and hexachlorobenzene. OxTube clarification in tube condition might be able to split and remove these hazardous chemical residues from waters due to their chemical similarity to pharmaceutics above. WHO has listed, among others, the following chemicals are to be restricted and removed from waste and natural waters:

• Aldrin C₁₂H₈Cl₆
• Dieldrin C₁₂H₈Cl₆O
• Chlordane C₁₀H₆Cl₈
• Heptachlor C₁₀H₅Cl₇ and heptachlor epoxide C₁₀H₅Cl₇
• DDT, Dichlorodiphenyltrichloroethane C₁₄H₉Cl₅
• Lindane (gamma-hexachlorocyclohexane) C₆H₆Cl₆
• Methoxychlor C₁₆H₁₅Cl₃O₂
• Bromoform CHBr₃
• Chloroform CHCl₃
• Bromodichloromethane CHBrCl₂
• Hexachlorobenzene C₆Cl₆

Table 3: Removal of 7 substances from the purified city waste water of Kuopio Finland with OxTube Combined Clarification [6,13].

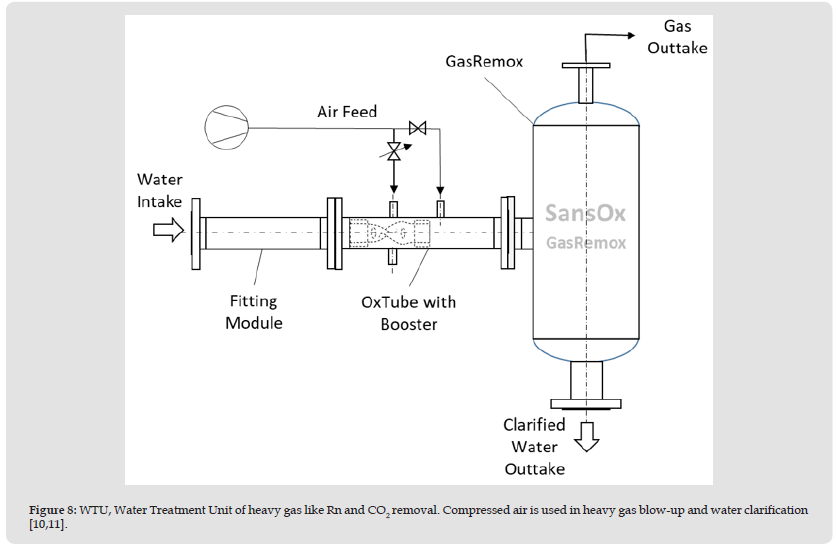

According to common understanding the best ways to remove radon from water are with granular activated carbon, various aeration methods and in many cases water distilling [14]. However, only OxTube Machine was able to remove Rn out of ground water in an invitational competition in The Philippines. OxTube heavy gas removal facility WTU is presented in Figure 8. It is applied in radon gas removal in intake of the ground water. Performance of the Rn removal can be seen in Table 4 [15,16]. In this case two WTU facilities with a compressor were installed in the present ground water intake after the pump for ground water. The intake water is clarified and aerated at the same time with Rn removal. In principle other radioactive residues could be removed from cooling water of a nuclear power plant.

Figure 8

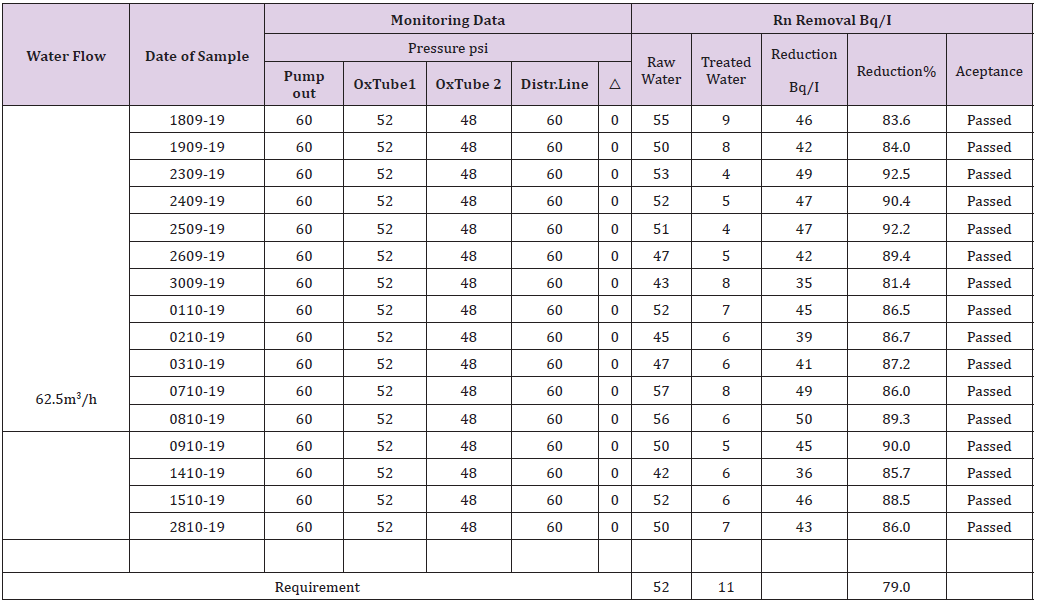

Table 4: Radon gas removal by two WTUs with compressed air and Boosters from a ground water intake [15,16].

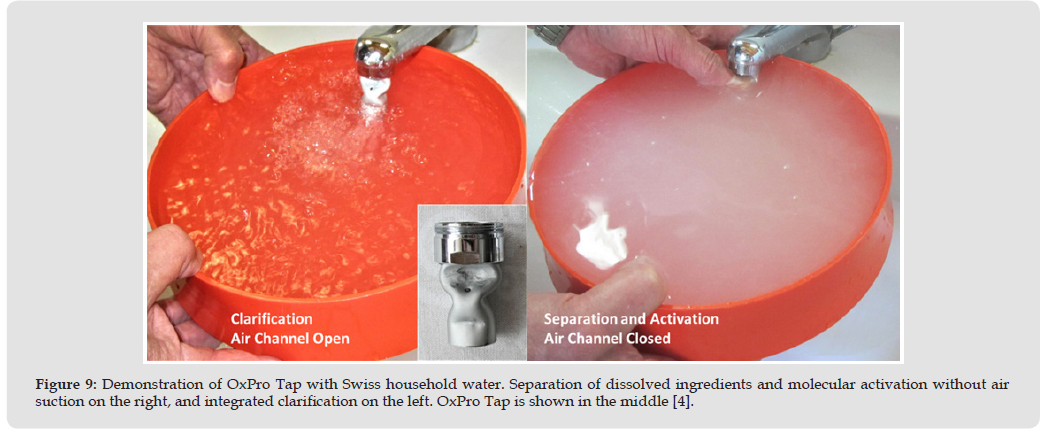

OxPro down scaled from OxTube treats the water in flowing condition in its hermetic tube. It splits molecular and ionic structures, activates and separates soluble ingredients in the water, and replaces these by air gases that are sucked by vacuum in the nozzle zone. The water is clarified and air gas dissolved in OxPro Tap and Shower hand set. A demonstration of OxPro Tap clarification is illustrated in Figure 9. Further, lot of air bubbles are generated and mixed in the water flow as seen in Figures 2 & 9. Over 500 individuals and professionals have been used so far OxPro treated Water for various tissue deceases and orally in order to improve metabolism. The treated Water transfers impacts of clean air immediately in to tissues like skin, nails and hair, and orally to metabolism in the wet contact, Figure 10. Further, surface tension of the treated water is reduced which enhances the interaction between the water and bio tissues. Naturally, desirable substances in general can be dissolved in the water such a way that improves the interaction and impact transfer. Evaporation of the water rinsed on skin leaves a prodective thin film of the clarification as illustrated in Figure 11. An example of many quick wound recoveries is presented in Figure 12. Skate blades dig two deep wounds and several small wounds on the arm in a clash of players. After disinfection the wounds were only rinsed with the OxPro Water four times a day. Total recovery of the wounds was identified after seven days just by rinsing the clarified water on the wounds four times a day. The water care was initiated on the second day of the injury.

Health and wellness impacts of the OxPro treated water are discussed briefly in reference [4]. DuOx Nozzle can be integrated easily in various devices like in shower and tap devices, and in various water purification systems

Figure 9

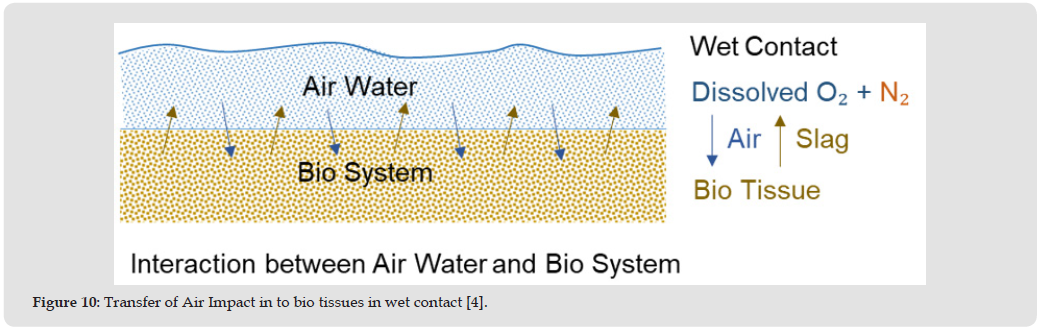

Figure 10

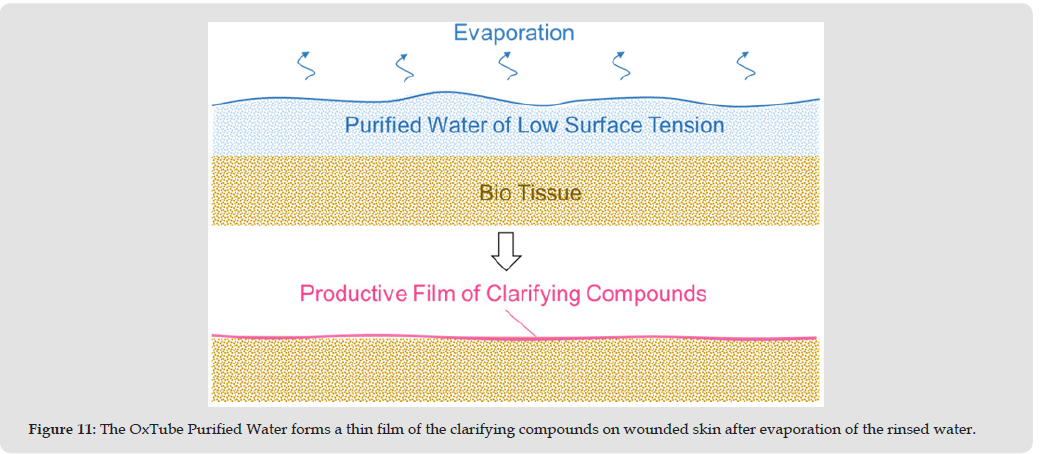

Figure 11

Figure 12

The OxPro treated water was mixed-in in a fish aquarium about one third of its volume. In couple of days the fishes turned brighter in color and more social in behavior, and further, algae disappeared and plant leaves turned from dark brown to green. It’s said, plain household water would kill fishes. Many ponds and lakes in various countries have been refreshed by OxTube Clarification with help of recovered food chains and nature balance. Only minor portion of the natural water was clarified in the cases just by providing to the vital forces of nature a peak effect on refreshing and bio balance. The cat in Figure 13 enjoys every day OxTube clarified test water in the laboratory. She finds and drinks always only OxTube clarified test water although it is hard to reach.

Figure 13

OxTube Water Clarification in tube condition has been applied successfully in removal of pharmaceutics, radon gas, calcium, manganese and iron from various water matrices, and in disinfection of wastewaters with ozone feed. Pharmaceutical residues in total over 24 μg/l were removed 90 percent by OxTube Machine combined with Clarification and Disinfection within 0.5 second in one through run [6]. Two through runs result 99 percent reduction. Radon removal from 57 to 8 Bq/l is achieved continuously in five installations of ground water intakes at four Water Plants. Disinfection of a hospital wastewater with ozone feed resulted 100 percent microbe reduction, and clarification and oxygenation of the wastewater at the same time. Reduction of viruses of 60 percent was achieved just by air suction without any other gas and chemicals feed. Two runs with air might result about 80 percent and four runs 97 percent reduction. Microbe growth and variation are reduced with just clean air suction and eliminated with ozone feed. Combined disinfection and drug removal in tube condition doesn’t cultivate resistance of viruses. Hybrid and decentralized waste water treatment should be carefully considered instead of centralized one with good reason [2]. In principle the wastewater can be clarified by OxTube in sewage drain on the way back to the nature. However, it’s definitely a better way to clarify wastewater combined with other water systems promoting recycling and evaporation cooling. OxTube Machine is easy to be integrated in and combined with present water systems. The DuOx nozzle can be integrated in hydro turbines combined with power generation and water clarification.

Combined fountain and water clarification by integration of DuOx Nozzle reduces energy consumption in to half or more. The tube clarification should be started at all the water intakes already due to fact that waters content already too much waste, drug residues, radon and micro plastics. Seas and oceans - refuse dumps of the water cycle - can be refreshed by integrating OxTube Machines in ship structures. A cruising ship can clarify sea water of 200 000 cubic meter a day without additional fuel consumption. There are more opportunities to be solved by water treatment in respect of the nature. It’s urgent to refresh waters and food chains as well as to improve wastewater treatment so that it can be sprayed on ground, plants, roofs and solar panels for evaporation and local cooling. During the research and test runs in product development the clarified water was found a bit slippery and its surface tension reduced. It has a significant impact on skin, hair and nails, and taste and mouth hygiene as well. Further, eczemas and various wounds recovered fast without additional medical care, and signs of metabolism improvement was reported by people and professionals involved in test runs. Pure air and water have certain health features, and mixing and dissolving these deeply together the healthy impacts and impact transfer speed are multiplied in wet contact.

1. Juhani Pylkkanen (2025) From Heat Sources to Climate Coolers. American Journal of Biomedical Science & Research 26(1).
2. Eberhard Morgenroth; Water reuse in the frame of circular economy, ICWRR 2024 & IWA-RMTC2024 Proceedings of Water Resource Recovery from Wastewater Treatment & 7th IWA Regional Membrane Technology Conference.
3. Juhani Pylkkanen (2024) Integrated Water Clarification by Nature Respect. American Journal of Biomedical Science & Research (23): 6763-6783.
4. Juhani Pylkkanen (2025) Water Clarification and Impact Transfer on Tissues in Wet Contact. Journal of Clinical & Biomedical Research, Published.
5. Pylkkanen J Combined Water Clarification, ICWRR 2024 & IWA-RMTC2024 Proceedings of Water Resource Recovery from Wastewater Treatment & 7^th IWA Regional Membrane Technology Conference.
6. Pylkkanen J (2021) OxTube Integrated Water Clarification for Removal of Pharmaceutical Residues and Disinfection, IWA Ecotechnologies for Wastewater Treatment 2021, Milan June, p. 21-25.
7. Juhani Pylkkanen (2025) Conversion Process of OxTube Water Clarification. American Journal of Biomedical Science & Research.
8. Juhani Pylkkanen (2025) Combined Ship Cruising and Sea Water Clarification. PriMera Scientific Engineering 6(4): 03-09.
9. Pylkkanen J (2023) VoxSton – A New Water Clarification System, Water Purification – Present and Future, IntechOpen.
10. Juhani Pylkkanen (2024) OxTube Water Clarification. PriMera Scientific Engineering 5(4): 03-18.
11. Juhani Pylkkanen (2024) OxTube and Combined Water Clarification. Journal of Civil Engineering Research & Technology.
12. (2022) Borthong Industrial Estate Co, Ltd.; Report on OxTube Small Scale Test Runs.
13. Ikonen J, Ilpo Nuutinen, Marjo Niittynen, Anna-Maria Hokajärvi, Tarja Maarit Pitkanen, et al. (2021) Presence and Reduction of Anthropogenic Substances with UV Light and Oxidizing Disinfectants in Wastewater. A Case Study at Kuopio, Finland, Water 13: 360.
14. National Library of Medicine; Risk Assessment of Radon in Drinking Water, Water-Mitigation Techniques.
15. Manila Water Radon Removal Project, Water Sampling Schedule and Results of Four Water Supply Plants and Five Installations, 2019-2023.
16. Philippine Nuclear Research Institute, Department of Science and Technology, Nuclear Analytical Techniques Application Laboratory, Service Analysis Reports 2018-2023.
