Abstract

The review discusses the results of studies of gas nanosensors based on zinc oxide. Possibilities and technologies for the manufacture of such markers are mentioned. ZnO sensors undoped, doped with impurities and carbon nanotubes, as well as markers based on nanowires and quantum dots are considered. Possibilities of decreasing the operating (working) temperature of heating the workingbody of the sensors while maintaining a sufficiently high sensitivity to gases are shown.Recently developed ZnO markers are operating at room temperature (without preheating their working body) in the absence of and under UV light from the sensor.

Keywords: Semiconductor; Nanosensors; Impurities; Sensors; UV Light; Microelectronic Circuits

Abbreviations:OT: Operating Temperature; ZnO: Zinc Oxide;0D:Zero- Dimensional; 1D: One-Dimensional; NRs: Nanorods; NWs:Nanowires; 2D: Two Dimensional Nanosheets; 3D: Three-Dimensional; MWCNT: Multi-Walled Carbon Nanotube; PG: Propylene Glycol; DMF: Dimethyl Phosphate;FA: Formaldehide; UV: Ultraviolet

Introduction

A lot of publications and patents about semiconductor gas sensors are published today in several scientific journals, materials of many Meetings, etc. Confine ourselves only of citations of four books published in the field [1-4]. The information about commercially available sensors based on metal oxides and produced in the USA, and Japan can be found in www.figarosensor.com, www.honeywell.com, www.sinkera.com, etc. All mentioned gas sensors need in high pre-heating of work semiconductor body, i.e. rather high consumption of electric energy. The lack of selectivity and long-term stability also often limit their applications. The range of the operating temperature (OT) of commercial gas sensors spans several hundred grads °C. The problem today is the development of new semiconductor gas nano sensors working at or nearby room temperature of work body (practically without its pre-heating) and the use of small-size metal oxides sensors functionalized (decorated) with different impurities or nanotubes, covered by noble metal coatings. Nanoscale sensor applications secured the increase of the specific surface area and further advantages. In addition, today’s sensors should be cheap and have possibilities to its inclusion into microelectronic circuits.

Today the gas sensitivity of thin-film structures made of different metal oxide materials (SnO₂, ZnO, TiO₂, WO₃, In₂O₃, CuO, NiO, Fe₂O₃, Co₃O₄, V₂O₅, ZnSnO₃, etc.) are studied widely [1-7]. Among the metal oxides, ZnO is proven as one of the best candidates for gas sensing applications due to its excellent stuff of tunable sensing parameters such as sensitivity, selectivity and stability, and good reliability, in addition to its non-toxic nature, controlled morphology, transparency in the visible range, a rather high electron mobility, cost-effectiveness and biocompatibility. Zinc oxide (ZnO) has a wide bandgap of 3.37eV. It has aroused wide attention from scientists [8-16], and has potential applications as UV photodetectors [10], light-emitting diodes [13], solar cells [14], varistors, phosphor for color displays, heat mirrors, piezoelectric devices, surface acoustic wave devices, etc. [15,16]. ZnO was used as catalysts in past decades because of its special electrical, optical and catalytic properties. The concept of gas sensors using ZnO thin films was first proposed by Seiyama et al. [15].

Non-Doped and Doped with Impurities and Carbon Nanotubes Zno Sensors

Gas sensors based on non-doped ZnO have substantial drawbacks as high OTs (normally between 300 and 500⁰C), a poor gas selectivity and a comparatively low gas sensitivity. To overcome these disadvantages, considerable disadvantages, considerable investigations are carried out. One critical issue in metal oxides gas sensors devices is a control the electronic and structural properties of the materials in order to modify the sensing properties. There are various techniques for modifying these properties. It is known that ruthenium in tin oxide matrix acts as an oxidative catalyst for hydrocarbons to achieve a considerable degree of sensitivity and selectivity. Therefore, an interesting approach is a modification of metal oxide surfaces using noble metal catalysts like Pt, Ru and Pd (see for example, [1,6]).

Another way to improve of characteristics of sensors is the appropriate doping of metal oxides with different metal impurities. Aluminum-doped ZnO thin films were manufactured in [16,17] on glass-ceramic substrates by the high- frequency magnetron sputtering method. The obtained ZnO<Al> thin films have nano-size grains (~20-30nm). The glass ceramic/ZnO<Al>/Pt structure showed sufficient sensitivity to hydrogen at the heating of the working body already up to 400⁰C. The investigations have shown that this structure has fast response and recovery time periods. We have shown that in contrast to many other metal-oxide materials, using our aluminum-doped ZnO films, it is possible to realize hydrogen sensors with remarkable low OT of pre-heating of the working body. The structure obtained satisfies the basic requirements to gas sensors. Analysis of the literature in [16] shown that ZnO nanorods sensors for detection of ethanol and hydrogen have OT=350⁰C [18], ZnO nanowire sensors for detection of ethanol 300⁰C [19], ZnO thin film sensors for detection of methane 150-350⁰C [20] and ethanol [21], Fe₂O₃-ZnO sensors for detection of NH3 350⁰C [22], ZnO sensors for detection of LPG 400⁰C [23], ZnFe2O4 sensors for detection of ethanol and acetone 300⁰C [24].

The other two investigations of aluminium doped ZnO films were reported in [25,26]. Pre-heating of the working body NOx sensors reported in [27] was 100-300⁰C. Thin-film hydrogen peroxide vapor sensors made from lantana-doped ZnO were manufactured using the high-frequency magnetron sputtering method [28]. Sensors made from La-doped doped ZnO exhibit a sufficient response to 10ppm of hydrogen peroxide vapors at the 220⁰C operating temperature. It was established that the dependencies of the response on hydrogen peroxide vapor concentration have a linear character for prepared structures at the 150⁰C operating temperature and can be used for determination of hydrogen peroxide vapor concentration. The response of such detectors of hydrogen peroxide vapors was dramatically increased after this pre-heating temperature of work body [27]. The indium was added to increase the ZnO resistive response and reduce the operating temperature of the 3D ZnO sensor. The highest sensitivity and selectivity toward ethanol gas at 250⁰C was observed for 5 at.% In doped ZnO. The response was about three times higher than that of the pure ZnO at 285⁰C, which was probably connected with the unique 3D ordered macroporous morphology of the ZnO: In, increased surface area and higher electron carrier concentration [28,29]. Mn /ZnO/Au/ZnO, Ag/Al-ZnO sensors of acetone and formaldehyde at OT=t240-275⁰C were reported in [30-33]. Porous ZnO acetone sensor with polymer colloids and OT=300⁰C was proposed in [34].

Nanorod and Quantum Dots Markers

We discuss below dimensional effects in small-size sensors. They are very important for modern microelectronics and measurement technics. Today the following small-size nanosensors are known: zero- dimensional (0D); one-dimensional (1D) nanorods (NRs) and nanowires (NWs); two dimensional (2D) nanosheets and films; three-dimensional (3D) porous nanostructures; three-dimensional (3D) nanostructures functionalized (decorated) with nanotubes. ZnO nanofibers, nanoplates, nanoflowers have been successfully synthesized by simple electrospinning hydrothermal routes and other methods [4]. One dimensional (1D) nanomaterials including nanowires, nanofibers, nanorods, and nanotubes have attracted great attention for sensing applications due to their unique morphology and the high surface-to-volume ratio [35]. Significant enhancement of hydrogen-sensing properties of ZnO nanofibers through NiO loading and ZnO nanowires decorated with WO₃ nanoparticles [36]. Sensor based on 1D fluorine-doped zinc oxide (1D-FZO) was reported in [37]. A sensitive H₂S gas sensor made of ZnO QDs of less than 4nm in diameter was fabricated in [38].

The average QD’ grain size was below twice the Debye length. High sensitivity (Rair/Rgas) of 75 and 567 at room temperature and 90°C, correspondingly, was realized. Microwave-assisted hydrolysis preparation of highly crystalline ZnO nanorod array was proposed in [39] for the manufacture of room temperature photoluminescence-based CO gas sensor. Nanotubes have attracted great attention as promising nanostructures for fabricating highly sensitive and selective gas sensors due to their vast surface area. In fact, the meso- and nanosized pores formed on various nanotubes surfaces during synthesis can significantly enhance the gas sensing performance by facilitating the penetration of targeting gas into the deepest parts of the sensing device. It was shown in Yerevan State University [6,16,40] that the functionalization of multi-walled carbon nanotube (MWCNT) / SnO₂ thick-film structures with Ru leads to a considerable increase in response signal to methanol, ethanol, acetone, toluene vapors as well as to isobutane gas.

Structures were obtained by hydrothermal synthesis and sol-gel techniques as well as their combination. Complicate phenomena processes took place in such functionalized nanocomposites, that can be considered as solid solutions of the metal oxide-other materials. The full picture is not possible to propose today, but we have to take into account the following: MWCNTs have a huge specific surface area and a nanoscale structure, which exposes a large number of sites at which the gases can react. Detection of various gases can be provided at low temperatures of pre-heating of the working body of a sensor. The electric conductivity of CNTs is much higher in comparison with the conductivity of metal oxides. Response of SnO₂/MWCNT sensors to propylene glycol (PG), dimethyl phosphate (DMF), and formaldehide (FA) vs OT is shown in (Figures 1 & 2) Dependencies of response and recovery times on OT are shown in (Figures 3-4).

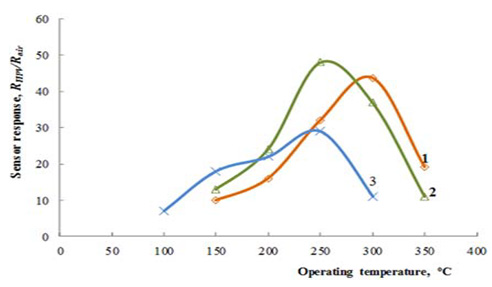

Figure 1: Dependence of the response to 1800ppm of hydrogen peroxide vapors on operating temperature for the Zn0.9929La0.0071O sensors on alumina substrate with films thicknesses of 80nm and
a. 210 nm and
b. for the marker with Zn0.9853La0.0147O films deposited on Multi-Sensor-Platform
c. [27].

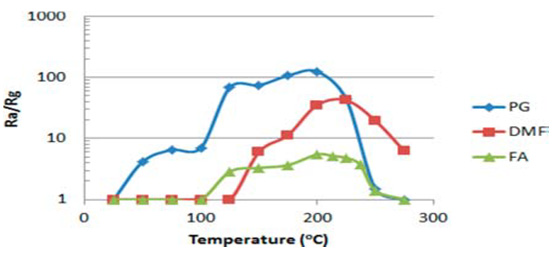

Figure 2: Response of SnO₂/MWCNT sensors to propylene glycol (PG), dimethyl phosphate DMF), and formaldehide (FA) on temperature.

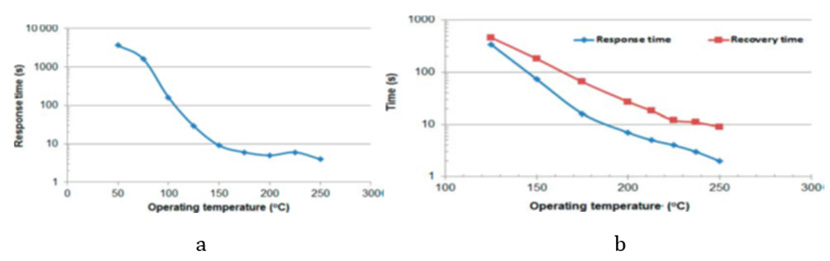

Figure 3: Response and recovery times of SnO₂/MWCNT PG vapor sensor vs operating temperature.

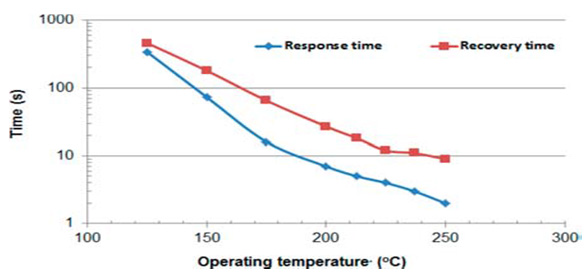

Figure 4: Recovery time of SnO₂/MWCNT PG vapor sensor vs operating temperature.

Therefore, CNTs reduce the resistance of the sensing metal oxide materials and opens a possibility for the percolation of charge carriers through the sample. Since a SnO₂ and ZnO has n-type and MWCNTs - p-type conductivity, there are two depletion layers in such hybrid films. The first depletion region is located at the metal oxide surface and the second one is located in the interface between the metal oxide nanoparticle and the MWCNTs. Formation of nanochannels and heterojunctions lead to enhanced gas sensitivity of such hybridized gas sensors as the decrease in the work function (barrier height) or increase in the conductivity of the metal oxide sensitive layer lead to the improvement in the performance of the gas sensor at low operating temperature [41,42]. Apparently, the discussed possible mechanisms require further experimental and theoretical investigations. Note that the highest sensitivity was achieved for SnO₂ loaded in 0.25% MWCNTs. The over-addition of MWCNTs in the composite decreases the resistance of the sensor sharply.

For over-addition of MWCNTs, the increasing number of electrons in the grain boundary reduce the resistance and decrease the sensitivity of the metal oxide + MWCNT sensors. Similar behavior is also reported for NO₂ by Sharma et al. [43]. The response toward acetone vapor was jumped to 72% after addition of 0.25% MWCNT also. Note that nanonsensors to hydrogen dioxide made from SnO₂/ MWCNT were reported also in [44-51] and ZnO/CNT-in [49]. ZnO nanoflowers acetone and ZnO hollow microspheres ethanol sensors with high OT reported in [50-52]. ZnO with 3D hierarchical mesoporous morphologies with high porosity, a large surface-to-volume ratio, is considered as a good candidate for gas sensing applications. Lupan et al. [53] have prepared porous 3D hybrid ZnO tetrapods by the flame transport method. They used different metallic (Fe, Cu, Al) microparticles with ZnO. The sensor based on ZnO/CuO (ZnO:Cu 20:1) shows a good resistive response at 350⁰C to 100ppm ethanol gas.

Acharyya et al. [54] have prepared 3D PdO–ZnO porous nanoflowers by using a liquid phase deposition method. Such PdO–ZnO structures showed an excellent response and recovery times for different alcohol vapors (0.5–700ppm). Their improved selectivity connected probably to the formation of a heterojunction junction, and lower activation energies for adsorption of methanol. Wang et al. [55] have prepared a 3D ordered macroporous ZnO nanostructure with a large surface area. Such ZnO based core–shell heterostructures showed higher gas response toward formaldehyde in comparison to those of other VOCs. It can be explained with the increase of the kinetic diameter of all detected VOCs in the order: formaldehyde (0.243nm) < ammonia (0.29nm) < methanol (0.363nm) < ethanol (0.453nm) < acetone (0.46nm) < toluene (0.525nm) [56]. Also, the ZnO-based gas sensors exhibit a low response for ammonia. Katoch et al. [57] prepared TiO₂/ZnO double-layer hollow fibers on polymer fibers using an atomic layer deposition technique. They have superior sensing response toward CO and other reducing gases.

A low-OT H₂ Gas Sensor based on Pt-loaded reduced Graphene Oxide/ZnO nanocomposites was reported in [58]. The obtained RGO/ZnO/Pt ternary composite exhibits outstanding sensing response towards H₂, almost 7.5 times and 3.0 times higher than that of pure ZnO and ZnO/RGO, respectively (Figure 5). The ethanol-sensing properties of the SnO₂/ZnO hierarchical nanostructures sensors were systematically investigated and compared to those of the bare SnO₂ NWs sensor in [59]. The results revealed that the design of the hierarchical nanostructures enhanced the ethanol gas response and selectivity for interfering gases such as NH₃, CO, H₂, CO₂, and LPG. The NH₃ gas-sensing properties of ZnO, SnO₂, and WO₃ NWs were investigated and compared in [60]. It was found that the responses and recovery time of SnO₂ and WO₃ NWs sensors to NH₃ gas are relatively comparable, and they have a better NH₃ gas-sensing performance than that of ZnO NWs sensor. The SnO₂ NWs sensor has the lowest OT. SnO₂/ZnO hetero nanofiber was exhibited high performance for acetone gas sensing due to very high toxicity of acetone, it is proposed to use thin layer ZnO/SnO₂/Yb₂O₃ NPs [61]. Typical TEM and SEM images of QDs, nanorods, nano-sheets, microcubes and ultra porous film are shown in (Figures 6 & 7) [34,62-66].

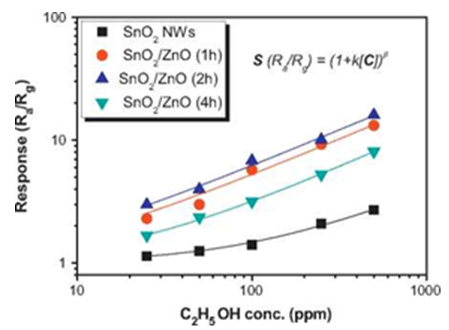

Figure 5: Ethanol response of the bare SnO₂ nanowires and the SnO₂/ZnO hierarchical nanostructures sensors as a function of ethanol gas concentration.

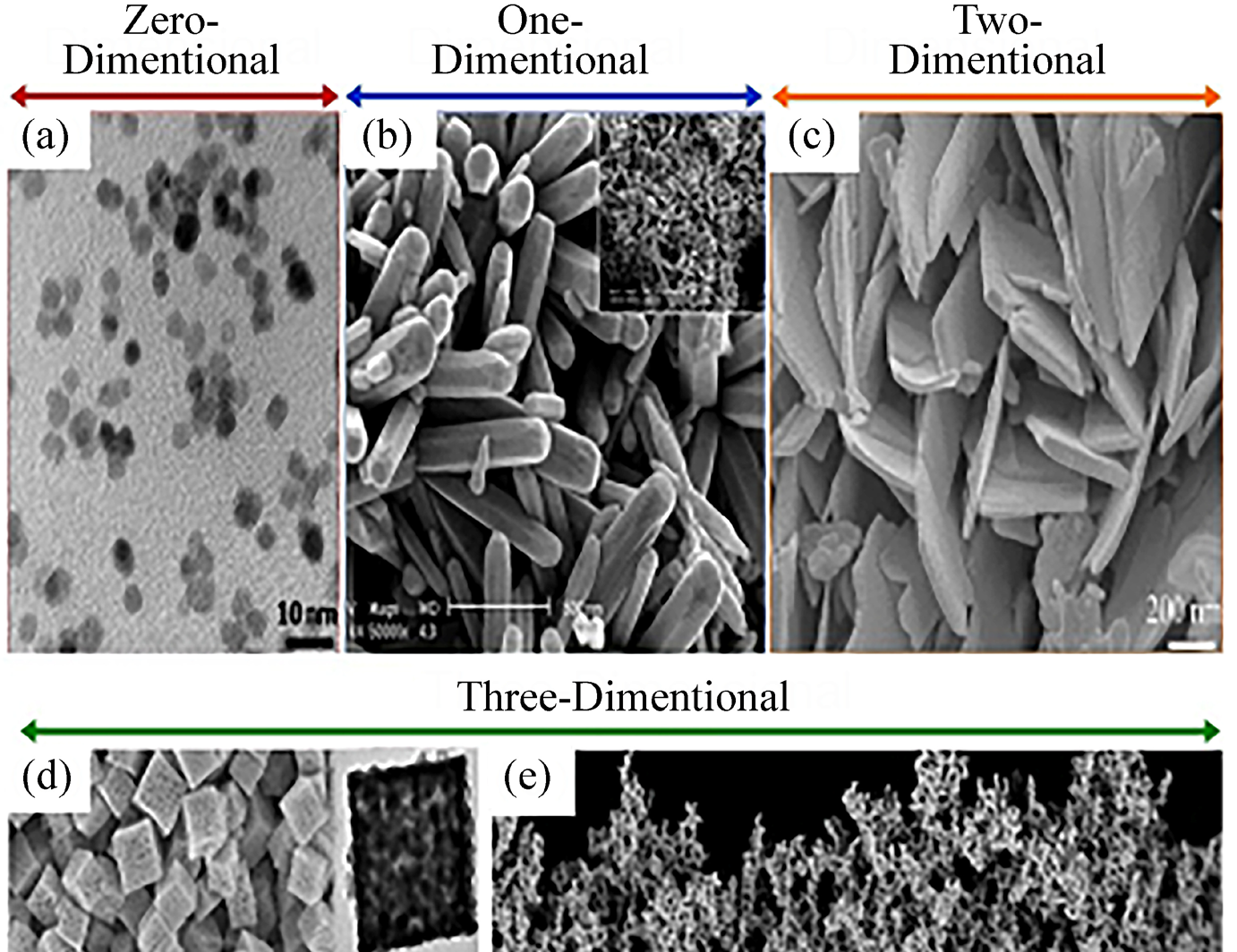

Figure 6: a. Typical TEM image of ZnO QDs obtained through a wet synthesis method based on alkaline activated hydrolysis and condensation of zinc acetate solutions [62].
b. SEM images of ZnO nanorods bundles synthesized at 150°C, over 4 hours [63].
c. SEM image of ZnO nano-sheets formed through a simple mixed hydrothermal synthesis method [64].
d. SEM images of acid washed porous SnO₂ microcubes after calcination at 900°C for 2 hours. Inset: TEM image of the asprepared porous SnO₂ microcubes [65].
e. ZnO ultraporous film made by flame spray pyrolysis [66].

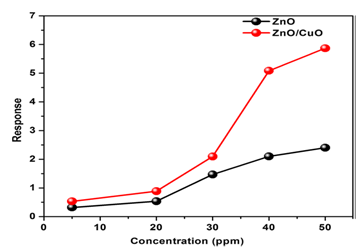

Figure 7: Comparison of ethanol response of ZnO and ZnO/CuO Structures.

ZnO Sensors Without Pre-Heating of Their Work Body

Recently sensors based on solid solutions of ZnO with different metal or graphene oxides were developed which did not need in pre-heating of work body of such sensors. A NiO (p-type)/ ultra-porous (n-type)/ZnO nanostructured film with the rapid room temperature sensing of ethanol was fabricated by Chen et al. [67]. The thick ZnO film with 98% porosity with the thickness about 120nm was deposited on a glass substrate featuring. Then the sputtered NiO nanoclusters were penetrated to the ZnO and form a homogeneous p-n heterojunction. In result, such nanosensor with interdigitated Pt electrodes had enhanced sensing response at 10ppb toward ethanol at room temperature. Mesoporous ZnO nanosheets were also used for preparation of superior humidity sensor and photodetector working at room temperature [68]. The room temperature (29°C) ethanol sensor based on vertically aligned ZnO nanorods decorated with CuO nanoparticles was successfully fabricated in in [69]. The vertical alignment of ZnO nanorods as well as its surface modification by CuO nanoparticles increased the effective surface area of the device and the formation of p-CuO/n-ZnO heterojunction at the interface are the reasons for the improved performance at room temperature. In addition to ethanol, the fabricated device has the capability to detect the presence of reducing gases like hydrogen sulfide and ammonia at room temperature but the response is less.

Figure 8: The measured sensing responses of Zn Onanorods under various operation temperatures

Pure ZnO thick film, prepared by screen-printing technique, was almost insensitive to NH₃. The MnO₂ modified ZnO films were sensitive and highly selective to NH₃ gas at room temperature. An exceptional sensitivity was found to low concentration (50ppm) of NH₃ gas at room temperature and no cross sensitivity was observed even to high concentrations of other hazardous and polluting gases. The effects of surface microstructure and MnO₂ concentrations on the sensitivity, selectivity, response and recovery of the sensor in the presence of NH₃ and other gases were studied and discussed in [70]. A highly selective room temperature ammonia sensor using spray deposited zinc oxide thin film was reported in [71] on glass substrates by spray pyrolysis technique. Response and recovery times of 20 and 25 s respectively were observed with the high response of 233 towards 25ppm of NH₃ vapor. It is known that breathing NO₂ and O₃ can trigger a variety of human health problems, for example, excessive inhalation of NO₂ at a concentration greater than 1ppm can cause pulmonary disease and severe damage to the respiratory system. Prolonged exposure to O₃ concentrations of 375ppb and higher may cause both acute and chronic diseases, such as upper respiratory infection or chronic respiratory and heart disease. Therefore, it is urgent to further the development of gas sensors to detect and identify oxidizing gases (NO₂ and O₃) already at low concentrations.

NO₂ gas sensing properties of conducting polymer Au loaded ZnO nanoparticle composite materials at room temperature were studied for ammonia sensing applications [72]. Such nanocomposite hybrid thin films showed a high relative response of 2.2 to 200ppb of NO₂ but virtually no response to CO or C₂H₅OH and very small response to NH₃ at room temperature. ZnO nanorods (NRs) and nanowires (NWs) were on-chip grown via a facile hydrothermal method and used for room-temperature NO₂ gas sensor applications [73]. Results show that the diameter of ZnO NRs and NWs is the dominant parameter of their NO₂ gas-sensing performance at room temperature. Hybrid material Zn₂SnO₄-RGO containing Zn₂SnO₄ nanoparticles (NPs) and immobilized reduced graphene oxide was developed in the [74] as a high-performance gas sensing material for the highly selective detection of ppb-levels of oxidizing gases (NO₂ and O₃).

Highly selective oxidizing gas sensors are of great importance for environmental pollution monitoring. Moreover, O₃ has significantly lower dissociation energy (1.1–1.3eV) than O₂ (5.1eV) [75,76]. As a consequence, many metal oxides were extensively investigated for O₃ sensing [77–79]. However, such sensors have the obvious disadvantage of high operating temperatures (150–300°C). Therefore, O₃ sensing properties of sensors based on metal oxide-RGO hybrids need to be further improved. A p-type RGO semiconductor is a desirable two-dimensional (2D) substrate for anchoring metal oxide NPs for gas sensing at room temperature, owing to oxygen-containing groups remaining on its surface, which act as adsorption sites for gas molecules [80,81]. At present, many new findings on SnO₂, In₂O₃, and Co₃O₄ metal oxide modified RGO have been reported, which are applied in improving NO₂ gas sensing performance [82–87]. Among many metal oxides, n-type Zn₂SnO₄ has received considerable attention because of its high electron mobility, high electrical conductivity and wide band gap (3.6eV), which make it suitable for gas sensor applications [88,89]. When Zn₂SnO₄ is coupled with RGO, its electrons can transfer from Zn₂SnO₄ to RGO. As a result, the effective electronic contact between Zn₂SnO₄ and RGO helps to improve the gas sensing performance. It was reported that Zn₂SnO₄ NWs and NO₂ NRs sensors have OT 200-300⁰C [90-92], hierarchical RGO-100⁰C [93], Zn₂SnO₄-RGO-30⁰C [74], but ZnO, PbS and two-dimensional WS2, MoS2 based RGO are NO₂ sensors at room temperature [74]. Detection limits are 0.05-0.15ppm.

In [74], a hybrid material containing Zn₂SnO₄ NPs and immobilized reduced graphene oxide (Zn₂SnO₄-RGO) were developed by members of Prof. U. Weimar’ Lab. The NO₂ sensing performances of Zn₂SnO₄-RGO-based sensors were investigated under various humidity RH. Note that the sensors based on RGO and Zn₂SnO₄-RGO hybrids have p-type behavior. The effect of humidity on NO₂ sensing properties is lacking in the previous reports. The sensors based on Zn₂SnO₄-RGO hybrids also exhibited high response values of up to 3.62 for 1ppm NO₂ at 50°C in 80% RH, which is much higher than that of pure RGO (1.31). The excellent sensing performances are mainly ascribed to the synergetic effect of Zn₂SnO₄ NPs and RGO. Zn₂SnO₄-RGO-based sensors exhibited enhanced sensitivity to NO₂ (5.97 to 1 ppm NO₂). Note that sensors based on WS2 nanosheets and PbS CQDs can detect NO₂ with a lower detection limit of 0.1ppm and 1ppm [53,54], respectively. In contrast to that, the sensors presented in [74] not only show high sensitivity to lower concentrations of NO₂ (2.86 for 150ppb in 50% RH) but are also able to retain this quality in a high humidity atmosphere (80%). NO₂ and O₃ sensing mechanisms were discussed in details in [74].

Decrease in Operating Temperature and Increase in Sensitivity of Sensors Under Illumination

The PbS QDs-decorated ZnO NRs with a hierarchical mesoporous structure were investigated in [94]. The nanocomposites showed near-infrared (NIR) adsorption derived from the PbS QDs with a narrow bandgap. Compared to the pristine ZnO nanorods, the ZnO/PbS nanocomposites-based sensor with the optimal loading amount of PbS exhibited higher response and quicker response/ recovery rates to ppm level of NO₂ at room temperature under NIR illumination. Moreover, the sensor exhibited full reversibility, low detection limit, good selectivity, and long-term stability to NO2. In the last few years, it has been shown that UV enhances the gas-sensing properties of metal oxides at room temperature [95-100]. UV illumination reduces response and recovery times and increases sensitivity. By using ZnO as the sensor material, it is possible to measure ppb-level NO₂ concentrations [101,102]. A transducer by which UV-supported metal oxide sensors can be miniaturized consuming only little energy has reported [103].

The gas-sensitive material adsorbs each NO₂ molecule impinging on the surface and thus the sensor signal increases linearly with the NO₂ dose. ZnO-based dosimeter and concentration gas sensors with regeneration by UV light should be feasible. An experimental proof on sol-gel synthesized Al-doped ZnO sensors demonstrated in [104] that the sensor concept works at room temperature for ppb-level NO₂ concentrations and low doses are given. A novel ultraviolet (UV) irradiation assisted nanostructured ZnO film for high performance oxygen sensing under at a temperature of 50⁰C was proposed in [105]. Nanorod ZnO structures with high exposing area are synthesized on a glass substrate with interdigital sensing electrodes via the developed two-stage sol–gel and hydrothermal processes. A UV-LED with an emission wavelength of 370nm is used to enhance the sensing performance of the nanostructured ZnO film. The response of the UV-assisted ZnO film is 4.66 times larger than the same film without UV exposure. UV activated polycrystalline ZnO films on a flexible substrate (Kapton) were used in [106] for room temperature O₂ and H₂O sensing to detect and differentiate between environmental changes in oxygen and water vapor. ZnO films were fabricated from bacteria-derived ZnS nanoparticles. Under UV irradiation O₂ reacted with photogenerated electrons resulting in chemisorption of ionic oxygen to the ZnO surface. Grain resistance and grain boundary capacitance of polycrystalline ZnO film dominates the response of both O₂ and H₂O in dark and under UV irradiation, while the response from the grain boundary resistance and grain capacitance are only significant under UV irradiation.

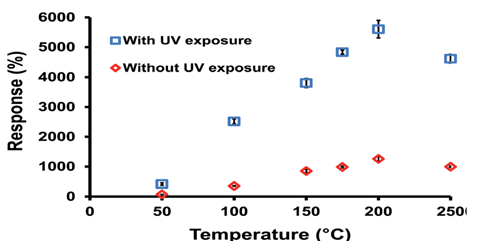

The ZnO nanowires/LED combination was used to fabricate an ethanol concentration sensor [100]. ZnO nanowires were hydrothermally synthesized on a silicone layer of an ultraviolet (UV) light-emitting diode (LED) ethanol sensing current of the sensor increased linearly with UV LED illumination at room temperature.

The effects of ZnO nanostructure morphology on the gas-sensing property of HCHO have been investigated in [107]. The gas sensor based on ZnO nanofibers showed high sensitivity, reversible response, and good selectivity towards HCHO under the irradiation of 365nm UV-light at room temperature. These desirable sensing features can be attributed to the special network structure with larger specific surface areas and its one-dimensional arrangement of ZnO nanocrystallites with a larger proportion of the depletion layer, which results in more obvious adjustment of the depletion layer width. ZnO nanofibers obtained by the electrospinning are attractive chemical sensing materials. Note also that SnO₂ doped with cobalt is a very promising material for the manufacture of hydrogen peroxide vapors sensor with room OT working under UV radiation [108].

Some Information about Theoretical Investigations

To date, many of the mechanisms of the gas adsorption process and the nature of active centers responsible for the adsorption of gases on the surface of metal oxide materials are far from fully understood. These processes are very complex and their theoretical analysis requires ab initio calculations of the adsorption energies, equilibrium geometry, and charge transfer between the surface and the adsorbent, based on the density functional theory (DFT) [109-112]. We performed calculations, in particular, based on the DFT implemented in the Quantum Espresso package [110-112]. We use the generalized gradient approximation (GGA) in the form suggested by Purdue, Burke, and Ernzerhof [113] to describe the exchange-correlation functional. We have so far investigated the interaction of hydrogen peroxide with the stoichiometric surface (110) of tin dioxide, in particular, we have studied the interaction of several starting configurations of H₂O₂ and the surface. Their structures, adsorption energies, and charge transfer between the molecule and the surface were calculated by the Bader charge analysis method [114]. Since defects, impurities, quantum-size effects, and gas molecules in the environment can have a significant effect on adsorption processes [115,116], additional research is needed to find out how all this can affect the process. An analysis of the latest book on quantum dots [117] shows no progress in studies of adsorption phenomena at the QD interface metal oxide - gas.

References

1. Jaanisco R, Tan OK (2013) (Eds.)., Semiconductor Gas Sensors. Woodhead Publishing Oxford, UK, pp. 552.
2. Lyshevski SE (2014) (Eds.). Encyclopedia of Nanoscience and Nanotechnology. CRC Press, USA.
3. Banika FG (2014) Chemical and biological sensors. Technosphera Press pp. 880.
4. Aroutiounian VM (2019) Gas nanosensors made from semiconductor metal oxides. J Cont Physics Arm Acad Sci 54: 356-367.
5. Aroutiounian VM (2020) Metal oxide gas biomarkers of diseases for medical and health applications. Biomed J Sci & Tech Res 29: 22328-22334.
6. Aroutiounian VM (2020) Microelectronic gas sensors for non-invasive analysis of exhaled gases. J Nanomedicine and Nanotechnology 11: 1-7.
7. Malik R, Vijay K, Tomer VK, Mishra YK and Lin L (2020) Functional gas sensing nanomaterials: A panoramic view. Appl Phys Rev 7: 021301.
8. Aroutiounian VM (2020) Experimental investigations of acetone sensors based on tin dioxide. J Nanomedicine Nanotechnology and Nanomaterials 1: 1-11.
9. Aroutiounian VM (2007) Metal oxide hydrogen, oxygen and carbon monooxide sensors for hydrogen setups and cells. Int J Hydrogen Energy 32(9); 1145-1158.
10. Aroutiounian VM, Adamyan AZ, Khachaturyan EA, Adamyan ZN, Hernadi K, et al. (2013) Study of the surface-ruthenated SnO₂/MWCNTs nanocomposite thick-film gas sensors. Sensors and Actuators 177: 308- 315.
11. Wang ZL (2008) Splendid one-dimensional nanostructures of zinc oxide: a new nano-material family for nanotechnology. ACS Nano 2(10): 1987-1992.
12. Kumar MA, Jung S, Ji T (2011) Protein biosensors based on polymer nanowires, carbon nanotubes and zinc oxide nanorods. Sensors 11(5): 5087-5111.
13. Cleetus CM, Fabian Alvarez Primo, Gisel Fregoso, Nivedita Lalitha Raveendran, Juan C Noveron, et al. (2020) Alginate Hydrogels with Embedded ZnO Nanoparticles for Wound Healing Therapy. Int J Nanomedicine 15: 5097-5111.
14. Peng SM, Su YK, Ji LW, Wu CZ, Cheng WB, et al. (2010) ZnO nano bridge array UV photodetectors. J Phys Chem C 114(7): 3204-3208.
15. Lim JH, Kang CK, Kim KK, Park IK, Hwang DK, et al. (2006) UV electroluminescence emission from ZnO light-emitting diodes grown by high-temperature radiofrequency sputtering. Adv Mater 18(20): 2720-2724.
16. Sun Y, Seo JH, Takacs CJ, Seifter J, Heeger AJ (2011) Inverted polymer solar cells integrated with a low-temperature-annealed sol-gel-derived ZnO film as an electron transport layer. Adv Mater 23(14): 1679-1683.
17. Wei A, Pan L, Huang W (2011) Recent progress in the ZnO nanostructure-based sensors. Mater Sci Eng 176(18): 1409-1421.
18. Seiyama T, Kato A, Fjiishi K, Nagatani M (1962) A New Detector for Gaseous Components Using Semiconductive Thin Films. Anal Chem 34(11): 1502-1503.
19. Galstyan VE, Aroutiounian VM, Arakelyan VM, Shahnazaryan GE (2008) Investigation of hydrogen sensor made of ZnO<Al> thin film. Arm J Phys 1: 242-246.
20. Aroutiounian VM, Arakelyan VM, Shahnazaryan GE, Galstyan VE, Alexanyan MS, et al. (2010) Investigation of hydrogen sensor made of ZnO<Al> thin film. ISJAEE 3: 125-127.
21. Bie Li Jian, Yan Xiao Na, Yin Jing, Duan Yue Qin, Yuan Zhi Hao (2007) Nanopillar ZnO gas sensor for hydrogen and ethanol. Sensors and Actuators 126(2): 604-608.
22. Hsueh Ting Jen, Hsu Cheng Liang, Chang Shoou Jinn, Chen I Ch (2007) Laterally grown ZnO nanowire ethanol gas sensors. Ibid 126(2): 473-477.
23. Bhattacharyya P, Basu PK, Saha H, Basu S (2007) Fast response methane sensor using nanocrystalline zinc oxide thin films derived by sol-gel method. Ibid 124: 62-67.
24. Kim Ki Won, Cho Pyeong Seok, Kim Sun Jung, Lee Jong Heun, Kang Chong Yun, et al. (2007) The selective detection of C₂H₅OH using SnO_2-ZnO thin film gas sensors prepared by combinatorial solution deposition. Ibid 123(1): 318-324.
25. Patil DR, Patil LA (2007) Ammonia sensing resistors based on Fe₂O₃-modified ZnO thick films. IEEE Sensors Journal 7(3): 434-439.
26. Shinde VR, Gujar TP, Lokhande CD, Mane RS, Han Sung Hwan (2007) Development of morphological dependent chemically deposited nanocrystalline ZnO films for liquefied petroleum gas (LPG) sensor. Sensors and Actuators 123(2): 882-887.
27. Navale SC, Ravia V, Mulla IS, Gosavi SW, Kulkarni SK (2007) Low-temperature synthesis and NOx sensing properties of nanostructured Al-doped ZnO. Ibid 126(2): 382-386.
28. Aroutiounian V, Valeri Arakelyan, Mikayel Aleksanyan, Gohar Shahnazaryan, Petr Kacer, et al. (2018) Thin-film SnO₂ and ZnO detectors of hydrogen peroxide vapors. J Sens Sens Syst 7: 281-288.
29. Z Wang, Z Tian, D Han, F Gu (2016) Highly sensitive and selective ethanol sensor fabricated with In-doped 3DOM ZnO. ACS Appl Mater Interfaces 8: 5466-5474.
30. J Xia, K Diao, Z Zheng, X Cui (2017) Porous Au/ZnO nanoparticles synthesised through a metal organic framework (MOF) route for enhanced acetone gas-sensing. RSC Adv 7: 38444-38451.
31. Darvishnejad MH, Anaraki Firooz A, Beheshtian J, Khodadadi AA (2016) Highly sensitive and selective ethanol and acetone gas sensors by adding some dopants (Mn, Fe, Co, Ni) onto hexagonal ZnO plates. Ibid 6: 7838.
32. X Xing, Y Li, D Deng, N Chen, X Liu, et al. (2016) Nanomaterial-based gas sensors: A review. RSC Adv 6: 101304.
33. HW Huang, Jing Liu, Guangfu He, Yao Peng, Min Wu, et al. (2015) Tunable macro-mesoporous ZnO nanostructures for highly sensitive ethanol and acetone gas sensors. Ibid 5: 101910.
34. Alenezi MR, Henley SJ, Emerson NG, Silva SRP (2014) Single Hierarchical Nanostructure Metal Oxide. Gas Sensor Nanoscale 6: 235-247.
35. Nasiri N, Bo R, Wang F, Fu L, Tricoli A (2015) Ultraporous electron-depleted ZnO nanoparticle networks for highly sensitive portable visible-blind UV photodetectors. Adv Mater 27(29): 4336-4343.
36. Lee J, Kim J, Mirzaei A, Woo Kim H, Kim SS (2018) Significant enhancement of hydrogen-sensing properties of ZnO nanofibers through NiO loading. Nanomaterials 8(11): 902-908.
37. Park S (2019) Enhancement of hydrogen sensing response of ZnO nanowires for the decoration with WO₃. Materials Letters 234: 315-318.
38. Napi M, Sultan SM, Ismail R, Ahmad M, Chai G (2019) Optimization of a Hydrothermal Growth Process for Low Resistance 1D Fluorine-Doped Zinc Oxide Nanostructures. J Nanomaterials 2019: 4574507.
39. Tan ST, Chun Hui Tan, Akrajas Ali Umar, Riski Titian Ginting, Hock Beng Lee, et al. (2016) Microwave-assisted hydrolysis preparation of highly crystalline ZnO nanorod array for room temperature photoluminescence-based CO gas sensor. Sensors and Actuators 227: 304-312.
40. Aroutiounian V, Adamyan Z, Sayunts A, Khachaturyan E, Adamyan A, et al. (2014) Comparative study of VOC based on ruthenated sensors based on MWCNT/SnO₂ Int J Emerging Trends in Science and Technology 1: 1309-1309.
41. Aroutiounian VM (2018) Semiconductor gas sensors made from metal oxides functionalized with carbon nanotubes. Sensors and Transducers 223: 9-21.
42. Aroutiounian VM (2015) Metal oxide gas sensors decorated with carbon nanotubes. Lith J Phys 55(6): 319-329.
43. Sharma A, Tomar M, Gupta V (2012) Zinc oxide-multiwalled carbon nanotubes hybrid nano composite based urea biosensor. J Mater Chem 22: 23608.
44. Aroutiounian VM (2019) Gas Nanosensors Made from Semiconductor Metal Oxides. J Cont Phys Arm Acad Sci 54(4): 356-367.
45. Aroutiounian VM (2018) Functionalized with Carbon Nanotubes Semiconductor Gas Sensors Made from Metal Oxides. Sensors and Transducers 228(12): 1-16.
46. Z Adamyan, Artak Sayunts, Vladimir Aroutiounian, Emma Khachaturyan, Arsen Adamyan, et al. (2017) Study of Propylene Glycol, Dimethylformamideand Formaldehyde Vapors Sensors Based on MWCNTs/SnO₂ Sensors & Transducers 213(6): 38-45.
47. Ahmadnia Feyzabad S, Khodadadi AA, Vesali Naseh M, Mortazavi Y (2012) Highly sensitive and selective sensors to volatile organic compounds using MWCNTs/SnO₂. Ibid 166-167: 150-155.
48. Alvi MA, Madani J, Kumar A (2019) Synthesis and characterization of SWCNTs/ZnO hybrid nanocomposite for sensor applications. Mater Res Express 6(10): 1054.
49. Salehi S, Nikan E, Khodadadi AA, Mortazavi Y (2014) Highly sensitive carbon nanotube-SnO₂ nanocomposite sensor for acetone detection in diabetes mellitus breath Sens. Actuators 205: 261-267.
50. Zhang S, Chen HS, Matras Postolek K, Yang P (2015) ZnO nanoflowers with single crystal structure towards enhanced gas sensing and photocatalysis. Phys Chem Chem Phys 17(45): 30300.
51. Wang X, Minggang Zhao, Yawen Song, Qingyun Liu, Yongxing Zhang, et al. (2019) Synthesis of ZnFe₂O₄/ZnO heterostructures decorated three-dimensional graphene foam as peroxidase mimetics for colorimetric assay of hydroquinone Sens. Actuators 283: 130-137.
52. Qiu J, Zhang R, Li J, Sang Y, Tang W, et al. (2015) Fluorescent graphene quantum dots as traceable, pH-sensitive drug delivery systems. Int J Nanomedicine 10: 6709-6724.
53. Lupan V, Postica, V Postica, J Gröttrup, AK Mishra, et al. (2017) Hybridization of zinc oxide tetrapods for selective gas sensing applications. ACS Appl Mater Interfaces 9(4): 4084-4099.
54. Acharyya D, KY Huang, PP Chattopadhyay, MS Ho, HJ Fechte, et al. (2016) Hybrid 3D Structures of ZnO Nanoflowers and PdO Nanoparticles as a Highly Selective Methanol Sensor. Analyst 141: 2977-3004.
55. Wang Z, Han TD, Gu F (2016) Highly Sensitive and Selective Ethanol Sensor Fabricated with In-Doped 3DOM ZnO ACS Appl. Mater. Interfaces 8(8): 5466-5474.
56. Tian H, Fan M, Ma L (2016) Zeolitic Imidazolate Framework Coated ZnO Nanorods as Molecular Sieving to Improve Selectivity of Formaldehyde Gas Sensor ACS Sens 1(3): 243-250.
57. Katoch A, Kim JH, Kim SS (2014) Synthesis and gas sensing properties of membrane template-grown hollow ZnO nanowires. ACS Appl Mater Interfaces 6: 21494- 21499.
58. Drmosh QA (2018) A low Temperature H₂ Gas Sensor Based on Pt loaded Reduced Graphene Oxide ZnO Nanocomposites. Proc 17^th International Meeting on Chemical Sensors.
59. Khoang ND, Do Dang Trung, Nguyen Van Duy, Nguyen Duc Hoa (2012) Design of SnO₂/ZnO hierarchical nanostructures for enhanced ethanol gas-sensing performance. Sensors and Actuators 174: 594- 601.
60. Hieu NV, Dang Thi Thanh Le, Nguyen Duc Khoang, Nguyen Van Quy (2015) A comparative study on the NH₃ gas-sensing properties of ZnO, SnO₂, and WO₃ J Nanomaterials 972025: 14.
61. Mohammed M, Alam MM, Asiri AM, MA Islam (2017) Fabrication of selective chemical sensor with ternary ZnO/SnO2/Yb2O3 nanoparticles. Talanta 170: 215-223.
62. Nasiri N, Clarke Ch (2019) Open Access Review Nanostructured Gas Sensors for Medical and Health Applications: Low to High Dimensional Materials Biosensors 9(1): 43-51.
63. Forleo A, Francioso L, Capone S, Siciliano P, Lommens P, et al. (2010) Synthesis and gas sensing properties of ZnO quantum dots. Sensors and Actuators 146(1): 111-115.
64. Kim J, Yong K (2011) Mechanism Study of ZnO Nanorod-Bundle Sensors for H₂S Gas Sensing. J Phys C 115(15): 7218-7224.
65. Fan H, Jia X (2011) Selective detection of acetone and gasoline by temperature modulation in zinc oxide nanosheets sensors. Solid State Ionics 192(1): 688-692.
66. E Vereshchagina, RM Tiggelaar, RGP Sanders, RAM Wolters, JGE Gardeniers (2015) Low power micro-calorimetric sensors for analysis of gaseous samples. Sensors and Actuators 206: 772-787.
67. Chen YL, Ling Yu, Dandan Feng, Ming Zhuo, Ming Zhang, et al. (2012) Superior ethanol-sensing properties based on Ni-doped SnO₂ p-n heterojunction hollow spheres. Ibid 166-167: 61-67.
68. Shobhnath P, Amit S Pawbake, Bhaskar R Sathe, Dattatray J Late, Pravin S Walke (2019) Superior humidity sensor and photodetector of at room temperature. Ibid 293: 83-92.
69. Subha PP, Jayaraj MK (2019) Enhanced room temperature gas sensing properties of low temperature solution processed ZnO/CuO heterojunction. BMC Chemistry 13(4).
70. Patil LA (2011) Room Temperature Ammonia Gas Sensing Using MnO₂ Modified ZnO Thick Film Resistors. J Modern Physics 2(10): 1215-1221.
71. Mani GK, J Bosco J, Rayappan B (2013) A highly selective room temperature ammonia sensor using spray deposited zinc oxide thin film. Sensors and Actuators 183: 459- 466.
72. Kruefu V, Anurat Wisitsoraat, Adisorn Tuantranont, Sukon Phanichphant (2014) Sensing properties of conducting polymer Au loaded ZnO nanoparticle composite materials. Nanoscale Research Letters 9(467).
73. Duo VT, Dang Thi Thanh Le, Nguyen Duc Hoa , Nguyen Van Duy, Chu Manh Hung, et al. (2019) New Design of ZnO Nanorod- and Nanowire-Based NO₂ Room-Temperature Sensors Prepared by Hydrothermal Method. J Nanomaterials 6821937: 9.
74. Wang Z, Andre Sackmann, Shang Gao, Udo Weimar, Geyu Lu, et al. (2019) Study on highly selective sensing behaviour of ppb-level oxidizing gas sensor based on Zn₂SnO₄ nanoparticles immobilized on reduced graphene oxide under humidity conditions. Sensors & Actuators 285: 590-560.
75. Korotcenkov G, Brinzari V, Cho BK (2016) In₂O₃- and SnO₂-based thin film ozone sensors: fundamentals. J Sensors 3816094: 31.
76. Banichevich A, Peyerimhoff SD, Grein F (1990) Ab initio potential surfaces for ozone dissociation in its ground and various electronically excited states. Chem Phys 173(1): 1-6.
77. Tsai YT, Chang SJ, Tang IT, Hsiao YJ, Ji LW (2018) High density novel porous ZnO nanosheets based on a microheater chip for ozone sensors. IEEE Sens J 18(13): 5559-5565.
78. Ziegler D, Marchisio A, Montanaro L, Palmero P, Tulliani JM (2018) Barium hexaferrite thick-films for ozone detection at low temperature. Solid State Ion 320: 24-32.
79. Catto AC, Fiorido T, Souza ELS, Andres J, Aguir K, et al. (2018) Improving the ozone gas-sensing properties of CuWO₄ J Alloys Compd 748: 411-417.
80. Wu J, Tao K, Guo Y, Li Z, Wang X, et al. (2017) A 3D chemically modified graphene hydrogel for fast, highly sensitive, and selective gas sensor. Adv Sci 4(3): 1600319.
81. Hu J, Zou C, Su Y, Li M, Hu N, et al. (2017) Enhanced NO₂ sensing performance of reduced graphene oxide by in situ anchoring carbon dots. J Mater Chem C 5: 6862-6871.
82. Li L, He S, Liu M, Zhang C, Chen W (2015) Three-dimensional mesoporous graphene temperature. Anal Chem 87: 1638-1645.
83. Gu F, Nie R, Han D, Wang Z (2015) In₂O₃-graphene nanocomposite based gas sensor for selective detection of NO₂ at room temperature. Sens Actuators 219: 94-99.
84. Chen N, Li X, Wang X, Yu J, Wang J, et al. (2013) Enhanced room temperature sensing of Co₃O₄-intercalated reduced graphene oxide based gas sensors. Sens Actuators 188: 902-908.
85. Xia Y, Wang J, Xu JL, Li X, Xie D, et al. (2016) Confined formation of ultrathin ZnO nanorods/reduced graphene oxide mesoporous nanocomposites for high-performance room-temperature NO₂ ACS Appl Mater Interfaces 8(51): 35454-35463.
86. Zhang H, Feng J, Fei T, Liu S, Zhang T (2014) SnO₂ nanoparticles-reduced graphene oxide nanocomposites for NO₂ sensing at low operating temperature. Sens Actuators 190: 472-478.
87. Liu S, Yu B, Zhang H, Fei T, Zhang T (2014) Enhancing NO₂ gas sensing performances at room temperature based on reduced graphene oxide-ZnO nanoparticles hybrids. Ibid 202: 272-278.
88. Chu X, Hu R, Wang J, Dong Y, Zhang W, et al. (2017) Preparation and gas sensing properties of graphene-Zn₂SnO₄ composite materials. Ibid 251: 120-126.
89. Li Y, Luo N, Sun G, Zhang B, Lin L, et al. (2018) In situ decoration of Zn₂SnO₄ nanoparticles on reduced graphene oxide for high performance ethanol sensor. Ceram Int 44: 6836-6842.
90. Thanh HX, Trung DD, Trung KQ, Dam KV, Duy NV, et al. (2017) On-chip growth of single phase Zn₂SnO₄ nanowires by thermal evaporation method for gas sensor application. J Alloys Compd 708: 470-475.
91. Park S, An S, Ko H, Jin C, Lee C (2013) Enhanced NO₂ sensing properties of Zn₂SnO₄-core/ZnO-shell nanorod sensors. Ceram Int 39(4): 3539-3545.
92. Liang YC, Lo YJ (2017) High-temperature solid-state reaction induced structure modifications and associated photoactivity and gas-sensing performance of binary oxide one-dimensional composite system. RSC Adv 7: 29428-29439.
93. Liu J, Li S, Zhang B, Xiao Y, Gao Y, et al. (2017) Ultrasensitive and low detection limit of nitrogen dioxide gas sensor based on flower-like ZnO hierarchical nanostructure modified by reduced graphene oxide. Sens Actuators 249: 715-724.
94. Chen R, Jing Wang, Yi Xia, Lan Xiang (2018) Near infrared light enhanced room-temperature NO₂ gas sensing by hierarchical ZnO nanorods functionalized with PbS quantum dots. Sensors and Actuators 255(3): 2538-2545.
95. Baratto C, Sberveglieri G, Onischuk, A, Caruso B, Di Stasio S (2004) Low temperature selective NO₂ sensors by nanostructured fibres of ZnO. Ibid 100(1-2): 261-265.
96. Zhu L, Zeng W (2017) Room-temperature gas sensing of ZnO-based gas sensor: A review. Ibid 267(1): 242-261.
97. Carotta MC, A Cervi, A Fioravanti, S Gherardi, A Giberti, et al. (2011) A novel ozone detection at room temperature through UV-LED-assisted ZnO thick film sensors. Thin Solid Film 520: 939-946.
98. Park S, An S, Mun Y, Lee C (2013) UV-enhanced NO₂ gas sensing properties of SnO₂-core/ZnO-shell nanowires at room temperature. ACS Appl Mater Interfaces 5(10): 4285-4292.
99. Zhang C, Xin Geng, Jiawei Li, Yifan Luo, Pengfei Lu (2017) Role of oxygen vacancy in tuning of optical, electrical and NO₂ sensing properties of ZnO1-x coatings at room temperature. Sens Actuators 248: 886-893.
100. Hsu CL, Chang LF, Hsueh TJ (2017) Light-activated humidity and gas sensing by ZnO nanowires grown on LED at room temperature. Ibid 249: 265-277.
101. Espid E, Taghipour F (2018) Facile Synthesis and UV-Activated Gas Sensing Performance of Ag: ZnO Nano-Ellipsoids. ECS J Solid State Sci Technol 7(7): Q3089-Q3093.
102. Markiewicz N, Olga Casals, Cristian Fabrega, Isabel Gràcia, Carles Cané, et al. (2019) Micro light plates for low-power photoactivated (gas) sensors. Appl Phys Lett 114: 53508.
103. Casals O, Nicolai Markiewicz, Cristian Fabrega, Isabel Gràcia, Carles Cané, et al. (2019) A parts per billion (ppb) sensor for NO₂ with microwatt power requirements based on micro light plates. ACS Sens 4(4): 822-826.
104. Wagner R, Schönauer Kamin D, Moos R (2019) Novel Operation Strategy to Obtain a Fast Gas Sensor for Continuous ppb-Level NO2 Detection at Room Temperature Using ZnO-A Concept Study with Experimental Proof Sensors 19: 4104
105. Jacobs CB, Artem B Maksov, Eric S Muckley, Liam Collins, Masoud Mahjouri Samani, et al. (2017) UV-activated ZnO films on a flexible substrate for room temperature O₂ and H₂O sensing. Sci Reports 7: 6053.
106. Cui J, Linqi Shi, Tengfeng Xie, Dejun Wang, Yanhong Lina (2016) UV-light illumination room temperature HCHO gas-sensing mechanism of ZnO with different nanostructures. Sensors and Actuators 227: 220-226.
107. Aleksanyan MS (2020) Study of the hydrogen peroxide vapors sensor under the influence of UV radiation. J Cont Phys Arm Acad Sci 55: 205-212.
108. Zakaryan H, Aroutiounian V (2017) Investigation of cobalt doped tin dioxide structure and defects: Density functional theory and empirical force fields. Ibid: 227- 232.
109. Hunanyan AA, Aghamalyan MA, Aroutiounian VM, Zakaryan HA (2019) Formation Energy of Intrinsic and Impurity Defects in Tin Dioxide. Ibid 54: 282-286.
110. Aghamalyan MA, Tricoli Antonio, Santarossa Gianluca, Vargas Angelo, Baiker Alfons (2020) First-principles the interaction of H2O₂ with the SnO₂ (110) surface Ibid 55: 235-242.
111. Ghosh SK, M Berkowitz, RG Parr (1984) Transcription of ground-state density-functional theory into alocal thermodynamics (local temperature /entropy / electronic structure). Proc Natl Acad Sci 81(24): 8028-8031.
112. Giannozzi P, Andreussi O, Brummeet T, O Bunau, M Buongiorno Nardelli, et al. (2017) Advanced capabilities for materials modelling with Quantum ESPRESSO. J Phys Condens Matter 29(46): 465901.
113. Perdew JP, Burke K, Ernzerhof M (1996) Why semilocal functionals work: Accuracy of the on-top pair density and importance of system averaging. Phys Rev Lett 77: 3865-3872.
114. Bader RFW (1990) Atoms in Molecules: A Quantum Theory. Oxford University Press.
115. Schierbaum KD, Kirner UK, Geiger JF, Göpel W (1991) ZnO thin film as methane sensor Different type of mechanisms of gas sensing. Sensors Actuators 4: 87-94.
116. Schierbaum KD, Wei Xing X, Göpel W (1993) An Experimental and Theoretical Investigation on the Solubility of Carbon Dioxide in Aqueous Solutions of Strong Electrolytes. Berichte der Bunsengesell schaft für Phys Chemie 97(1): 363-368.
117. (2020) Core/Shell Quantum Dots Synthesis, Properties and Devices (Eds. X. Tong и Z. M. Wang) Springer PH 2020.

Abstract

The review discusses the results of studies of gas nanosensors based on zinc oxide. Possibilities and technologies for the manufacture of such markers are mentioned. ZnO sensors undoped, doped with impurities and carbon nanotubes, as well as markers based on nanowires and quantum dots are considered. Possibilities of decreasing the operating (working) temperature of heating the workingbody of the sensors while maintaining a sufficiently high sensitivity to gases are shown.Recently developed ZnO markers are operating at room temperature (without preheating their working body) in the absence of and under UV light from the sensor.

Keywords: Semiconductor; Nanosensors; Impurities; Sensors; UV Light; Microelectronic Circuits

Abbreviations:OT: Operating Temperature; ZnO: Zinc Oxide;0D:Zero- Dimensional; 1D: One-Dimensional; NRs: Nanorods; NWs:Nanowires; 2D: Two Dimensional Nanosheets; 3D: Three-Dimensional; MWCNT: Multi-Walled Carbon Nanotube; PG: Propylene Glycol; DMF: Dimethyl Phosphate;FA: Formaldehide; UV: Ultraviolet
