Carbon Dot-Based Hybrid Nanogels for Biomedical Applications Volume 4 - Issue 3

Hui Wang1* and Rongrong Nie2

  • 1High Magnetic Field Laboratory, Hefei Institutes of Physical Science, , China
  • 2Department of Prosthdontics, Medical School of Nanjing University, China

Received: April 26, 2018;   Published:May 08, 2018

*Corresponding author: Hui Wang, High Magnetic Field Laboratory, Hefei Institutes of Physical Science, Chinese Academy of Sciences, China

DOI: 10.26717/BJSTR.2018.04.001042

Abstract PDF

Introduction

Stimuli-responsive nanogels have achieved great progress in biomedical fields for clinical diagnosis and therapy due to their porous structures, large surface area, good biocompatibility [1]. Recently, much attention has been focused on the synthesis of stimuli-responsive nanogels with optical maker in polymer network, therefore, realizing the combination of biosensing, bioimaging and controlled drug delivery [2]. Such hybrid nanogels have great potential for disease diagnosis and imaging-guided cancer therapy since the fluorescent imaging not only precisely monitor the change of biosignal in vitro and in vivo, but also identify the location of the tumor region and monitor the treatment progress [3].

Carbon dots (CDs), as a new type of carbon nanomaterial, have demonstrated widely biomedical applications because of their small size distribution, good biocompatibility, tunable photoluminescence (PL), excellent photostability and chemical inertness [4,5]. Compared to the other optical marker including noble metal, organic dyes and semiconductor quantum dot NPs, CDs not only demonstrate non or lower toxicity and biocompatibility based on their cytotoxic and in vivo toxic evaluation, but also possess hydrophilic functional groups on the surface of CDs [6]. In addition, CDs can be applied as photothermal agent and twophoton fluorescent (TPF) imaging agent due to their strong NIR absorption and upconversion PL property [7]. Thanks to the combination of these key properties of CDs, it is very meaningful to develop CDs-based hybrid nanogels for biosensing and bioimaging and responsive drug delivery to enhance the therapeutic efficacy. In this mini-review, it will summarize our latest developments and applications and addresses the future perspectives of CDs-based hybrid nanogels in the biomedical field.

Synthesis and Characterization

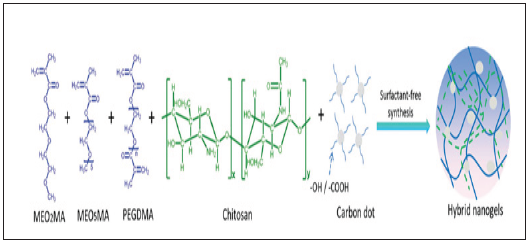

To ensure the stability of CDs in the hybrid nanogels, the CDs with smaller size distribution should possess reactive functional groups including –COOH, –OH or/and –NH2 groups. These functional groups are expected to react with comonomer via secondary forces (e.g., hydrogen bonding, van der Waals forces, or electrostatic interactions). After copolymerization and crosslinking, the CDs will be randomly embedded in the resultant nanogel networks, leading to the effectively immobilization of CDs in the polymer nanogels. Up to now, several methods have been used to prepare to CDs-based hybrid nanogels, such as: microfluidic technology, nonsolvent induced phase separation and CD-induced association of polysaccharides, emulsion/inverse emulsion polymerization and precipitation polymerization. Figure 1 shows a type example for the synthesis of CD-based hybrid nanogel using one-pot precipitation polymerization method (Figure 1) [3]. Schematic illustration of the formation of PEG–chitosan@CD hybrid nanogels. Reproduced from ref. 3 with permission (2018) of the Royal Society of Chemistry.

Figure 1: a type example for the synthesis of CD-based hybrid nanogel using one-pot precipitation polymerization method.

Consider the small size and low contrast of CDs, it is difficult to characterize the successful loading of CDs in polymer nanogels. The combination of different measurement may be an alternative strategy to confirm the structure of CDs-based hybrid nanogels. For example, transmission electron microscopy (TEM), high resolution TEM (HRTEM), scanning electron microscopy (SEM), and atomic force microscopy (AFM) are useful tools to identify the location and distribution of the CDs in the polymer network. The UV-vis and PL measurement are useful to ensure the stability and optical property of CDs-based hybrid nanogels because the as-obtained hybrid nanogels always undergo the long-term dialysis to remove the free CDs in the hybrid nanogels.

Biomedical Applications

The combination of responsive nanogels and CDs have widened their applications or enhanced a single property level in different areas of nanomedicine. Nowadays, many CDs-based hybrid nanogels have been designed for biosensing, bioimaging, responsive drug release Wang et al. [8-11]. Reported a CDs-based hybrid nanogels composed of acrylamide (AAm), 4-Vinylphenyl boronic acid (VPBA) and CD for glucose sensing and glucose-responsive insulin release, as shown in Figure 2 [12]. The reversible swelling/ deswelling transition of the poly(VPBA–AAm) nanogels under different glucose concentrations could change the surface states of the CDs and thus affect the fluorescence properties of the hybrid nanogels. The porous property of the poly(VPBA–AAm)–CD hybrid nanogels provides a high loading capacity for insulin molecules and the insulin release rate from the hybrid nanogels can be triggered by the glucose concentration in the dispersion medium. Figure 2 Schematic illustration of multifunctional hybrid microgels with CDs randomly embedded in the glucose-responsive poly(VPBA-AAm) gel network for the integration of NIR upconversion fluorescence glucose sensing and glucose-responsive insulin release. Reprinted from ref. 12 with permission (2016) of the Royal Society of Chemistry.

Figure 2:

One example about imaging-guided cancer therapy is the synthesis of the chitosan@CD hybrid nanogels, as shown in Figure 3 [13]. The DOX-loaded chitosan@CD hybrid nanogels demonstrated dual-responsive drug release under NIR light and different pH. In addition, the NIR imaging function of the CD in hybrid nanogels could be applied to monitor the therapeutic effect of tumor by imaging- guided chemotherapy in vivo. More importantly, the therapeutic capacity achieved by combined chemo-photothermal therapy is much higher than the additive result from separated photothermal therapy and chemotherapy based on the tumor growth curves, indicating a synergistic effect by NIR-induced cancer therapy. Figure 3 Schematic depiction of DOX-loaded CCHNs for therapeutic application. Reprinted from ref. 13 with permission (2017) of the American Chemical Society.

Figure 3:

Conclusion

In summary, we have reviewed the preparation and structure and application of CDs-based hybrid nanogels. Despite the significant advances have been obtained, the clinical translation of CDs-based hybrid nanogels for all other diverse applications remain to be realized. A number of parameters affect the efficacy of this sensing, imaging and drug delivery and requires further optimization, such as: fluorescence emission range, quantum yield and tumor accumulation of hybrid nanogels. The application of these CDs-based hybrid nanogels in the industry is also still in its first steps and there is a strict need for relevant clinical data relating to safety and efficacy of hybrid nanogels in vivo.
