Research ArticleOpen Access

Automatic Generation of Drug Concentration Gradient by a Modified Ink-Jet Printer and its Application in Drug Screening Volume 2 - Issue 1

Yong Luo*1, Xiaorui Li1, Yueyang Qu1, Jiu Deng1, Zhigang Gao1, Weijie Zhao1, Yao Lu2, Bingcheng Lin2 and Tingjiao Liu3

  • 1School of Pharmaceutical Science and Technology, Dalian University of Technology, Dalian, China
  • 2Dalian Institute of Chemical Physics, Chinese Academy of Sciences, Dalian, China
  • 3College of Stomatology, Dalian Medical University, Dalian, China

Received: January 19, 2018;   Published: January 31, 2018

Corresponding author: Yong Luo, G212 experimental building, west campus of Dalian University of Technology, Dalian, China

DOI: 10.26717/BJSTR.2018.02.000708

Abstract PDF

Abstract

Manual preparation of drug concentration gradient is labor-intensive and limits the efficiency of a drug screening to some extent, especially at large scale. In this study, we reported an automatic method to generate drug concentration gradient in 24-well plate. We loaded drug solution in a modified hot ink-jet printer, designed printing pattern in the WORD software, customized the concentration gradient in the WORD software by RGB coding, and finally printed the drug concentration gradient in the 24-well plate. A drug concentration gradient can be automatically generated within 5s in arbitrary pattern. On the basis of this flexible technology, we developed an ink-jet printer-based drug screening assay. Concentration gradient of 5-fluorouracil, as well as Mcf-7 cells, was printed in the 24-well plate, and the inhibition rate of Mcf-7 cells was measured by MTT method. This was the first time that hot inkjet printing technology was used in drug screening.

Keywords: Bioprinting; Drug Screening; Concentration Gradient; Ink-Jet Printer; RGB

Introduction

Preparation of a concentration gradient of drug candidate is a prerequisite to study cell-drug interaction quantitatively. Currently, this step is manually operated in the laboratory, which is labor intensive and annoying. Automation is desirable in practice. Dertinger et al. developed an automatic method to generate concentration gradient [1]. Used this method in drug screening [2,3]. However, this method was only applicable in micro fluidic device, not in 96-well or 24-well plate, thus its applications were limited. In this study, we developed a method to generate concentration gradient in plate automatically, using normal commercial ink-jet printer and WORD software. We also used the same printer to print the cell suspension, thus we finally developed a drug screening assay based on hot ink-jet printing. Hot ink-jet printing technique is useful for printing cells in biomedical engineering. It works by the principle in which the heating element turns the "biological inks" into bubbles at bottom of the nozzle instantly and the pressure generated makes a certain amount of inks free from the surface tension there and pushed from the nozzle. As an approach for cell printing, hot ink-jet printer has been used in tissue engineering [4]. Biological microarray construction [5]. Stem cell research [6]. Andgene transcription [7]. However, there are few reports in its application in drug screening at cellular level. In this paper, a hot ink-jet printer was custom-modified as an automatic dispensing tool for the engineering of cell arrays and generation of concentration gradient of drugs in a 24-well plate. By means of this apparatus, cell/drug composite arrays can be automatically generated for drug screening. RGB value was used as the output gauge of drug concentrations for the first time. A Mcf-7 cell/5-fluorouracil composite array was engineered to demonstrate the applicability of the hot ink-jet printer in the drug screening

Materials and Methods

a.Materials

Hoechst 33342 fluorescence dye and 3-(4,5-dimethylthiazol-2- yl)-2,5-diphenyltetrazolium bromide (MTT) were purchased from Kubolai inc. Beijing. Propidium iodide was obtained from Jingchun technology inc. Shanghai. 5-fluorouracil was purchased from Sigma- Aldrich, United Kingdom. Phosphor ate buffer saline (pH7.4) was prepared and sterilized in lab. DMEMcell culture medium and fetal bovine serum from HyClone, New Zealand, was used in this study. Methanol of HPLC grade from local company was used. Ultrapure water was obtained with Millipore water purification system.

b.Instruments

Canon PIXMA ip 1980 ink-jet printer with PG830 ink box from Canon, Japan, was modified in this study. Inverted fluorescence microscope IX71 from Olympus, Japan, was used. Agilent 1200HPLC was from Agilent, USA.SynergyH1 microplate reader was from BioTek, USA.

c.Modification of the Printer and the Cartridge

A Canon PIXMA ip 1980 hot-inject printer was modified as follows the front cover, paper support, rear tray, paper thickness lever and paper guide were dissembled sequentially while cartridge holder and paper sensor being kept intact. The printer after modification was shown as in (Figure.1) (left part). Before use, the body of the printer was sterilized and kept inside an ultraviolet-lighted laminar hood overnight. A Canon PG830 ink box was modified as follows after the top cover of the ink box was ripped from the main body of the box, the sponge inside the ink box was discarded and the metal filter at the bottom of the box was dismantled with the ink reservoir exposed, followed by a thorough cleanup. The ink box after modification was shown as in (Figure.1) (right part). Prior to use, the box was emerged in 75% ethanol and air dried in a laminar airflow, followed by being exposed with ultraviolet light for at least 30 mins.

Figure 1: A Canon PIXMA ip 1980 printer and a Canon PG830 ink box for biological printing after modification. The white plate was a 24-well plate used as "paper".

d. Printing Concentration Gradient of 5-fluorouracil in the 24-Well plate

10ml 8mg/ml 5-fluorouracil solution was precisely obtained when 0.08g 5-fluorouracil was dissolved in PBS solution in a 10 ml volumetric flask and filtered through a 0.22 |im diameter membrane to remove possible bacteria. This working solution was loaded in the ink box. The printing pattern was designed in the WORD software with designated RGB values. Clicked the "print" button in the WORD software and the concentration gradient of 5-fluorouracil was automated created in the 24-well plate within 5s. We collected the drug solution printed in each well, and analyzed their concentrations with HPLC. In a typical setup, a SB-C18 HPLC column (4.6mm diameter, 250mm long) was used and the sample was detected by ultraviolet absorption with a single wavelength of 265 nm. The temperature of the column was set at 35oC . The volume of each sample was 10 |il and the mobile phase was made of methanol and water (5:95) with a flow rate of 1.0ml/min.

e. Preparation and Printing of Cell Suspension

Mcf-7 cells of the third generation with a high viability were chosen as the main raw material for preparation of the cell suspension. Prior to being loaded into the ink box, a Mcf-7 cell suspension was prepared by pancreatic digestion, centrifuging, collection, counting and re-suspending. The Mcf-7 cell suspensions were prepared at four different concentrations, 3x106, 6x106, 9x106 and 1.2x107/ml. Following the pattern of a round spot with the diameter of 5 mm, the cell suspension with different densities was printed into a 24-well plate with the modified printer as above. Observation was made with an inverted microscope equipped with an X4 zoom objective.

f.Counting of Printed Cell Numbers and Viability Analysis

400 μL 10% NCBS culture media was added into the plate loaded with the printed Mcf-7 cells to keep their viability. And 10μL 0.4mg/ml Hoechst 33342 solution was added into the plate at 37oC for 35mins in the dark, followed by the addition of 10 μL 0.2mg/ ml PI solution for another 10 mins. Then the cell suspension in the plate were collected and centrifuged. The cells from the bottom of centrifuge tube were collected, and washed with PBS solution for 3 times. Then the cells washed were re-suspended in 1 ml cell culture medium to form a new cell suspension. 20μL new cell suspension was pipetted out and added drop wise onto a cell counter. Counting of cell number and observation of cells were conducted with an inverted fluorescence microscope with an X 10 zoom objective.

g.Procedure of Drug Screening

Mcf-7 cells with a high viability were selected for construction of cell/drug arrays. The Mcf-7 cell suspension was prepared by pancreatic digestion, centrifuging, collection, counting, and resuspension with a concentration of 9x106/ml. The Mcf-7 cell suspension was loaded into sterilized a PG830 ink box and printed into 5-mm-diameter round spots in a 24-well plate to form a Mcf-7 cell array. 400μL 10% NCBS culture media was immediately loaded into the plate. After being cultured at 37oC under 5%CO2for 24hrs, 8 mg/ml5-fluorouracil solution were printed into the plate which were already loaded with Mcf-7 cells, with different RGB codes. As a result, cell/drug composite arrays (n=3) were formed. After being at 37oC ,5%CO2 for another 48 hrs,40μL 5mg/mlMTT solution were loaded into the plate and incubated at 37oC for 4hrs. Then the supernatant was discarded and 500 μLDMSO was added. The plate was shaken for 15mins to achieve DMSO thoroughly dissolved. Then 200 μL supernatant was collected and transferred into a 96-well plate and the adsorption under 490 nm wavelengths was recorded.

Results/Observations

a. Printed Concentration Gradient of 5-Fluorouracil

The printing pattern was designed in WORD software, as shown in (Figure.2). Each round spot, corresponding to a well in 24-well plate in location, was 5mm in diameter. These round spots varied in RGB values. We printed drugs following the pattern in (Figure.2), and measured the concentration of drug in each well. We plotted the drug concentration in each well, as shown in (Figure.3). This technology has five advantages compared to manual method (1) it is automatic; (2) we can obtain arbitrary concentration gradient by customizing the RGB values (Figure.3 A-D); (2) the RGB code value was linearly related to the concentration of printed 5-fluorouracil. This can be expressed as Y=-0.7691X+53.975 with R2 being equal to 0.9878 (Figure.3A); (3) it is fast, and a concentration gradient can be generated within 5s; (4) the hot inkjet printer was cheaper than a micropipette which is used for manual preparation. Each row was designed for generation a specific drug concentration gradient. In the first row, the RGB values from left to right were (20,20,20), (30,30,30),(40,40,40), (50,50,50),(60,60,60), (70,70,70). In the second row, the RGB values from left to right were (70,70,70),(20.20.20) ,(70,70,70), (70,70,70), (20,20,20),(70,70,70).In the third row, the RGB values from left to right were (20,20,20),(20.20.20) ,(50,50,50), (50,50,50),(70,70,70), (70,70,70).In the fourth row, the RGB values from left to right were (70,70,70), (70,70,70),(50,50,50), (50,50,50),(20,20,20), (20,20,20).

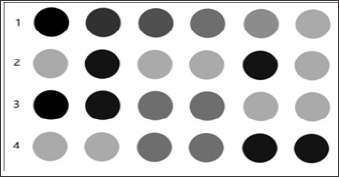

Figure 2: The printing pattern designed in the WORD software.

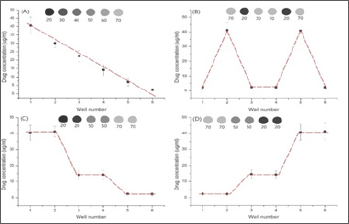

Figure 3: Different types of drug concentration gradient printed in the 24-well plate. On the top of each plot was the printing pattern designed in the WORD software, and the number below was RGB value.

b. Printing of Mcf-7 cell suspension

(Figure. 4) shows the printed pattern of Mcf-7 cells, with different concentration of Mcf-7 suspension loaded in the printer. When the concentrations were 3x106/ml and 6x106/ml, the printed round spots were incompletely constructed with sparse distributions of cells. It might be caused by the low concentration of cell suspension. When the concentration was 1.2x107/ml, few inks were injected from the nozzle and the printed round spot was hard to be identified. It might be attributed to the high concentration of the cell suspension which jammed the nozzle. However, when the concentration was 9x106/ml, the printed round spot was full of well-distributed cells. It showed that the cell suspension with a concentration of 9x106/ml is the best-performed one and should be adopted in the experiment. After counting, the average number of cell in each round spot in the cell array was 3x104. After printing, the viability of the cells was the main gauge which reflects the validity of the cell printing process. Hot ink-jet printing was suspected to cause heat damage or mechanical damage on cells [8]. Hoechst 33342 is a membrane permissive dye and emits blue fluorescence under 350 nm excitation after combining with DNA in cells. And PI is only capable of penetrating into dead cells. After PI combines with DNA in cells, and emits red fluorescence under 543 nm excitation. Therefore, we are able to investigate the viability of cells when coupling Hoechst 33342 and PI dyes after cell printing. As seen in (Figure.5), the number of dead cells which emit red fluorescence is negligible and it supports that the negative effect of our cell printing technique on the viability of printed cells can be ignored.

Figure 4: The bright field images of printed round spots of Mcf-7 cells with varied cell concentration. (from left to right: 3×106/ml, 6×106 /ml,9×106 /ml), scale bar: 500 μm.

Figure 5: Microscopic observations of printedcells dyed by Hoechst33342 (left) and PI(right), under excitations of 350 nm and 543 nm wavelengths, respectively. Scale bar: 500 μm.

c.Drug Screening Assay Based on Printing

The concentration of the printed 5-fluorouracil can be pretuned with the RGB code setup from the WORD software. A Mcf-7 cell/5-fluorouracil composite array was formed after incubation for 48 hrs. And the inhibition rate of the experimental group at varied concentrations and the control group were tested with MTT method. And the statistics of their optical absorbance at different RGB values and the relative inhibition rates were listed in (Table 1). It can be seen from Table 1 that within the range we investigated, the biological viability of the cells in the composite array increased as the RGB value ramped up. In our experimental setup in which RGB code value was kept between 20 and 70, the concentration of the printed 5-fluorouracil increased as the RGB value dropped. In Table 1: Absorbance by MTT and relative inhibition rate (n=3) another word, a low RGB value yielded a cell/drug composite array with a relatively high concentration and dose of 5-fluorouracil. Therefore, as the RGB value was lowered, a stronger interaction between Mcf-7 and 5-fluorouracil was achieved and a higher inhibition phenomenon occurred. This suggested that the Mcf-7 cell/5-fluorouracil composite array established by our method can be used for the inhibition study of 5-fluorouracil at different concentrations and it possessed the potential of evaluating in vitro cellular viability.

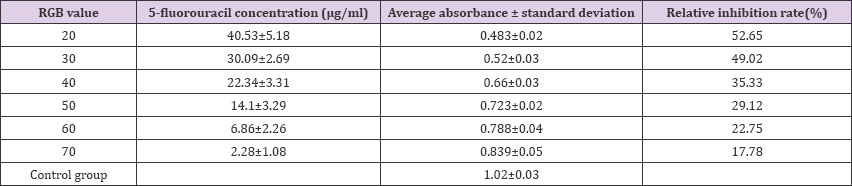

Table 1: Absorbance by MTT and relative inhibition rate (n=3)

Discussion

Cell printing technique has demonstrated remarkable advantages as following:

    a) High precision, cells can be precisely localized and distributed in three dimensions [9].

    b) Rapid speed, tissue samples with biological viability can be constructed in a short time.

    c) High automation grade, it has the possibility to be industrialized at a large scale [10].

    d) Simple to be established and operated, it is straightforward to be modified or upgraded [11].

In our experiment, RGB tuning was used for controlling the output doses of 5-fluorouraciland the hot inkjet technique was adopted to build cell/drug composite arrays. And the viability of the cells in the composite arrays was evaluated. Inspired by the model from Boland's group [11,12]. A Canon hot inkjet printer and an ink box were successfully modified into a biological printer. And a Mcf- 7 cell suspension with a concentration of 9x106 cells/ml showed the best printing performance in cell distribution and density on the array. The printed cell array demonstrated patterns with the most complete morphology. By testing the concentration of drug solutions with HPLC, we were able to identify the concentration of 5-fluorouracil on the printed matrix produced from different RGB code value. The results show that high-definition Mcf-7 cell arrays can be constructed with our modified printer and ink box. And moreover, the concentration of 5-fluorouracil arrays can be tuned by changing the RGB color code value. The viability of cells by printing is the major indicator for the feasibility of the printing operation. We used Hoechst33342 and PI to dye the printed cells and applied excitations of 350 nm and 543 nm, respectively. The results showed that hot inkjet printing has little damage on the Mcf- 7 cells and they are in consistency with the literatures [8,13]. Also, we used MTT method to identify the inhibition rate of 5-fluorouracil on Mcf-7 in the cell/drug array. When RGB code value was 30, the dose of the 5-fluorouracil was 30.09±2.69|ig/ml with a relative inhibition rate of 49.02%. These results supported the feasibility of applying the cell/drug printing method in investigating in vitro cellular viability and it provides new possibility of drug screening based on biological printing.

Conclusion

In this study, we developed an automatic method to generate drug concentration gradient in 24-well plate based on hot inkjet printer. The total time was less than 5s. Arbitrary concentration gradient can be easily generated by RGB coding. The cost of printing equipment was very low. This method is expected to make drug screening experiment more user-friendly.

References

  1. Dertinger SKW, Chiu DT, Jeon NL, Whitesides GM (2001) Generation of gradients having complex shapes using microfluidic networks. Analytical Chemistry 73(6): 1240-1246.
  2. Ye N, Qin J, Shi W, Lin B (2007) Characterizing doxorubicin-induced apoptosis in HepG2 cells using an integrated microfluidic device. Electrophoresis 28: 1146-1153.
  3. Ye N, Qin J, Shi W, Liu X, Lin B (2007) Cell-based high content screening using an integrated microfluidic device. Lab on a Chip 7: 1696-1704.
  4. Guillotin B, Guillemot F (2011) Cell patterning technologies for organotypic tissue fabrication. Trends Biotechnol 29: 183-190.
  5. Zheng Q, Lu J, Chen H, Huang L, Cai J, et al. (2011) Application of inkjet printing technique for biological material delivery and antimicrobial assays. Anal Biochem 410(2): 171-176.
  6. Owczarczak AB, Shuford SO, Wood ST, Deitch S, Dean D (2012) Creating Transient Cell Membrane Pores Using a Standard Inkjet Printer. JOVE 16(61): pi 3681.
  7. Mironov V, Boland T, Trusk T, Forgacs G, Markwald RR (2003) Organ printing: computer-aided jet-based 3D tissue engineering. Trends Biotechnol 21(4): 157-161.
  8. Xu T, Jin J, Gregory C, Hickman JJ, Boland T (2005) Inkjet printing of viable mammalian cells. Biomaterials (2005) 26: 93-99.
  9. Xu T, Zhao WX, Zhu JM, Albanna MZ, Yoo JJ, et al. (2013) Complex heterogeneous tissue constructs containing multiple cell types prepared by inkjet printing technology. Biomaterials 34(1): 130-139.
  10. Wilson WC, Boland T (2003) Cell and organ printing 1: Protein and cell printers. Anat Rec Part A 272A: 491-496.
  11. Roth EA, Xu T, Das M, Gregory C, Hickman JJ, et al. (2004) Inkjet printing for high-throughput cell patterning. Biomaterials 25(17): 3707-3715.
  12. Cui XF, Dean D, Ruggeri ZM, Boland T (2010) Cell Damage Evaluation of Thermal Inkjet Printed Chinese Hamster Ovary Cells. Biotechnol Bioeng 106(6): 963-969.
  13. Derby B (2008) Bioprinting: inkjet printing proteins and hybrid cell- containing materials and structures. J Mater Chem 18: 5717-5721.
