Biomedical Journal of Scientific & Technical Research

May, 2021, Volume 35, 5, pp 27949-27955

Research Article

Research Article

Isolation and Characterization of Detergent Compatible Alkaline Protease Producing Bacillus Subtilis APO-1

Ami Vishnusinh Sayaniya and Prittesh Patel*

Author Affiliations

CG Bhakta Institute of Biotechnology, Uka Tarsadia University, India

Received: May 03, 2021 | Published: May 12, 2021

Corresponding author: Prittesh Patel, Assistant Professor, C. G. Bhakta Institute of Biotechnology, Uka Tarsadia University, Bardoli, Maliba Campus, Surat, Gujarat, India

DOI: 10.26717/BJSTR.2021.35.005750

Abstract

Alkaline Proteases catalyze the hydrolysis of peptide bond between proteins have main applications in detergent industry. Therefore, production of alkaline protease with useful attributes of biotechnological interest from efficient microbial strain is significant. In present study, an extracellular alkaline protease enzyme producing bacteria Bacillus Subtilis APO-1 was isolated from soil of industrial area near Surat. The casein hydrolysis agar medium was used for isolation, cultivation and maintenance of alkaline protease producing strain. Bacteria with 22 mm clear zone of hydrolysis around the colony were selected for its further morphological, biochemical, and molecular level. The culture dependent approach based on PCR amplified partial subunit 16S rDNA sequence analysis was submitted to NCBI to obtain accession number MN093333. Molecular phylogenetic analysis suggested that the isolated bacterium is in homology with Bacillus Subtilis. Alkaline protease production was evaluated in a broad pH range 7.0–11.5 and found that organism was capable of producing enzyme at all pH range studied. Alkaline protease isolated from Bacillus Subtilis APO-1, recorded highest enzyme activity of 48.27U/ml at 37 °C. Further, it was found that among the various conditions of washing tried, the combination of alkaline protease of APO-1 and detergent was able to significantly remove blood stain from white cotton cloth. Our research suggests that the Bacillus Subtilis APO- 1 is a promising strain for alkaline protease production for its possible commercial use as a constituent of detergent formulations.

Keywords: Alkaline Protease; Bacteria; Biomedical Waste; Bacillus Subtilis; Enzyme

Introduction

Proteases are a complex group omnipresent enzyme in nature which catalyze the cleavage of the peptide bonds among the amino acid residues in different proteins; has a place with a class of hydrolases with massive physiological and commercial importance. In light of their acid-base behavior, proteases are characterized in to three groups, that is, acid, neutral and alkaline proteases. Acid proteases perform best at pH range of 2.0-5.0 and are mostly produced by fungi. Proteases with pH optima in the range of 7.0 or around are called neutral proteases. Neutral proteases are predominantly produced by plants. While proteases optimum activity at pH range of 8 or more are classified as alkaline proteases [1]. Though categorized into three classes on the bases of mode of action, alkaline proteases alone comprise about 89% of the entire protease market because of its broad applications in detergents, leather processing, protein recovery, meat tenderization, food industry, pharmaceuticals, and bioremediation [2]. Alkaline proteases, with good activity and stability in high alkaline range, are interesting for several bioengineering and biotechnological applications. However, their predominant application is in the detergent industry [3]. Since the pH of laundry detergents is in the range of 9.0–12.0, alkaline proteases are utilized in detergent formulations, with other hydrolytic enzymes, as additives to work with the breakdown and release of proteins [4,5].

Many microorganisms produce proteases; however, the enormous extent of commercial alkaline proteases is generally gotten from Bacillus sp., as a result of its capacity to secrete large amount of alkaline proteases having significant proteolytic activity, stability at high temperature and wide range of pH. Number of studies has been reported on alkaline protease production by Bacillus like Bacillus cereus [6], Bacillus infantis [7], Bacillus subtilis [8], Bacillus pumilus [9] etc. Microbial proteases, especially from Bacillus subtilis are the most widely exploited industrial enzymes [10]. Advances in analytical methods have exhibited that proteases direct profoundly explicit specific and selective modifications of proteins, for example, activation of zymogenic types of enzymes by limited proteolysis, blood coagulating and lysis of fibrin clusters, and processing and transport of secretory proteins across the membranes [11]. Removal of proteinaceous stains like blood, milk, egg, grass and chocolate is very difficult utilizing traditional detergent approach. Vishalakshi et al. reported the successful removal of blood stain by alkaline protease from Streptomyces gulbargensis [12]. Notwithstanding, removal of such stain is accomplished by utilizing alkaline proteases [13,14]. The alkaline protease enzymes are acquiring a massive significance in the detergent industries because of their inherent capacity to sustain the broad pH with effective specificity in various cleanser detergent additives. The latest trend is to utilize detergent-compatible proteases that are steady over a wide pH range. This enzyme also has inherent benefits and cost-effectiveness over the ordinary synthetic catalysts. The finding for detergent-compatible proteases with better properties is a continuous exercise. The present study was initiated to with the aim to collect soil sample from dump side near Surat for the isolation of alkaline protease producing alkaliphilic bacteria and qualitative and quantitative analysis of protease production. Further as an application part work was intended for blood stain removal and detergent compatibility of crude enzyme.

Material and Methods

Isolation of Alkaline Protease Producing Bacteria

Soil sample were collected from Surat dump side area below 5-6 cm depth and stored in sterile plastic bags and taken to the lab aseptically. Isolation of alkaline protease producing alkaliphilic bacteria was carried out using alkaline solid agar medium contained glucose (5 g/L), yeast extract (3 g/L), peptone (5 g/L), and agar (20 g/L), (pH 7 to 10.5) in addition to 20% (w/v) casein powder, as an indicator of alkaline protease production [15]. 1 gm of soil sample was weighted and serial dilution from 10-1 to 10-6 was carried out. 0.1 ml of each aliquot was spread on above mentioned media plate and incubated at 37 ⁰C for 24 to 48 hours. The zone of hydrolysis was noted on all the pH range evaluated and the colony showing highest zone of inhibition was selected for further study. The colony was grown on casein agar plate repeatedly and preserved on Nutrient agar slant at 4⁰C for further study.

Morphological and Biochemical Characterization

The morphological characterization of the isolated bacterium was performed through Gram staining. The different biochemical tests were performed to determining the metabolic activities of bacteria are indole production test, methyl red test, Voges - Proskauer test, urea hydrolysis test, hydrogen sulphide production test, nitrate reduction test, ammonia production test, citrate utilization test, phenylalanine deamination test, triple sugar iron agar test, starch hydrolysis test, lipid hydrolysis test, casein hydrolysis test, hemolysin production test, oxidase test, catalase test, gelatin hydrolysis test, dehydrogenase test, sugar utilization test.

Molecular Identification and Phylogenetic Analysis

The genomic DNA was isolated according to Sambrook [16]. Total genomic DNA was extracted were used for PCR amplification of 16S rDNA in combination with the following sets of universal primers 1) 8F AGA GTT TGA TCM TGG CTC AG and 2) 1492R CGG TTA CCT TGT TAC GAC TT). DNA sequencing of PCR amplicon was carried out with 8F & 1492R primers using BDT v3.1 Cycle sequencing kit on ABI 3730xl Genetic Analyzer. The PCR amplified products were then subjected to 16s rRNA sequencing for molecular identification. Analyses of 16s rDNA gene sequence was performed with bioinformatics tool BLAST. Sequences were aligned against the database of National Centre for Biotechnology Information (www. ncbi.nlm.nih.gov). The sequences were aligned using multiple sequence alignment program CLUSTAL W followed by MEGA X for phylogenetic analysis. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) were shown next to the branches and phylogenetic tree generated with Neighbor-joining method.

pH Stability

Solid agar medium similar as isolation media was used to evaluate the ability of Bacillus Subtilis APO-1 to produce alkaline protease at different pH value i.e 7, 8, 9, 10, 11 and 11.5. 24-hour active culture was centrally inoculated on solid agar medium and plates were incubated at 37 ⁰C. Alkaline protease production was observed after 48 hours.

Protease Activity Assay

200μl of 24hr old bacterial culture was inoculated in 60ml casein hydrolysate medium and kept in incubator at 37°C. After 48-hour incubation, the bacterial culture was centrifuged at 3000 rpm for 12 min and the supernatant was utilized for alkaline protease enzyme assay. Protease action was dictated by addition of 0.65% casein in 50mM phosphate buffer (pH 7.5) as substrate. 1ml enzyme and casein substrate was incubated at 37°C for 20 min. To stop the reaction 2.5ml Trichloroacetic acid was utilized. One unit of protease activity was characterized as the 0.1 unit increase in optical density upon 1 hr incubation. At that point solution was filtered by utilizing a 0.45 μm filter and 2ml of filtrate was mixed with 2.5ml of 500mM sodium carbonate and incubated for 20 min at 37°C. After that, 0.5ml of Folin Ciocalteu’s reagent was added, and the absorbance was measured at 660 nm utilizing Spectrophotometer [17]. The measure of protease produced by bacteria was assessed and expressed in microgram of tyrosine released under standard test conditions.

Stain Removal and Detergent Compatibility of Bacterial Enzyme

Activity of protease enzyme as a detergent additive was analyzed through different combinations of treatment on blood sample-stained cloth. Four white cotton clothes (5×5cm) with blood separately treated in flasks as followings.

a) Blood-stained cloth treated with (2ml) distilled water.

b) Blood-stained cloth treated with (1ml) distilled water+ 1ml detergent (0.01mg/ml).

c) Blood-stained cloth treated with (2ml) enzyme solution.

d) Blood-stained cloth treated with (1ml) detergent (0.01mg/ml) + (2ml) enzyme solution.

All four flasks were incubated at 37⁰C for 15 min. All four flasks were incubated at 37⁰C for 15 min. After incubation, cloth pieces were taken out, washed with normal water and dried. Visual assessment of cloth pieces displayed the impact of enzymes in removal of blood stains (Figure 2). Untreated cloth pieces stained with blood were taken as control.

Result and Discussion

Isolation of Alkaline Protease Producing Bacteria

In the present study, an attempt was made to isolate most efficient extracellular alkaline protease producing bacteria from soil sample from industrial field present on outskirts of Surat region Gujarat. Based on its Casein hydrolysate activity through zone of solubilization, one potential isolate APO-1 was selected for further study (Figure 1). Bacterial colony appeared on the casein agar plates were observed to be 2-3 mm in diameter, lobate, flat and white and exhibited around 22 mm clear zone of hydrolysis around the colony. The isolate APO-1 was stored in 40% glycerol at 4ºC for further experimental studies.

Figure 1: Zone of casien solubiliztion by Bacilli subtilis APO-1 isolated from industrial soil sample collected from Surat.

Morphological, Biochemical and Molecular Characterization

The results of morphological characterization reveal that Bacillus Subtilis APO-1 was gram-positive, facultative anaerobe, motile and short rod. An extensive biochemical characterization of APO-1 was carried out and is tabulated in Table 1. Genomic DNA of the isolate APO-1 was amplified and obtained the product length was 1050 bp. The PCR amplification using forward primer and reverse primer generated a single band amplicon size of 1 kb on 1 % agarose gel (Figure 2).

Figure 2: PCR amplification of 16S rDNA gene of the isolated bacterium.

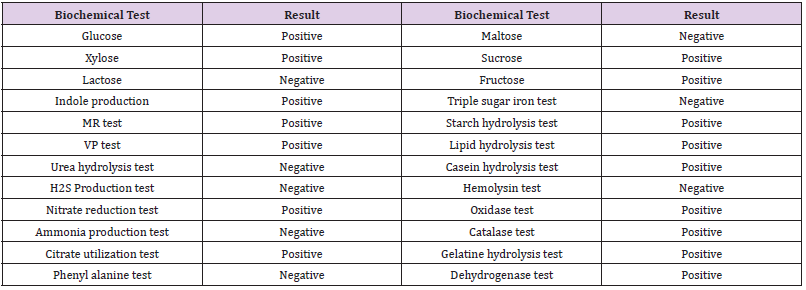

Table 1: Biochemical Characterization of Bacilli subtilis APO-1.

Morphological, Biochemical and Molecular Characterization

The results of morphological characterization reveal that Bacillus Subtilis APO-1 was gram-positive, facultative anaerobe, motile and short rod. An extensive biochemical characterization of APO-1 was carried out and is tabulated in Table 1. Genomic DNA of the isolate APO-1 was amplified and obtained the product length was 1050 bp. The PCR amplification using forward primer and reverse primer generated a single band amplicon size of 1 kb on 1 % agarose gel (Figure 2).

Neighbor-joining phylogenetic tree showing the relatedness between the 16S rRNA gene sequence of the isolated bacterium and their closest relative sequences retrieved from microbial databases (Figure 3). The phylogenetic tree constructed by the neighbor-joining method indicated that the isolate presented on separate cluster. The numbers in parentheses correspond to the accession number. The optimal tree with the sum of branch length = 0.23477701 is shown. The evolutionary distances were computed using the Maximum Composite Likelihood method and are in the units of the number of base substitutions per site. The analysis involved 11 nucleotide sequences. That is, fewer than 5% alignment gaps, missing data, and ambiguous bases were allowed at any position. All positions with less than 95% site coverage were eliminated. Evolutionary analyses were conducted in MEGA X.

Figure 3: Phylogenetic tree generated with Neighbour-joining method. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) were shown next to the branches and phylogenetic tree.

pH Stability

pH stability is an essential characteristic for the use of alkaline protease as detergent additives. In our study protease of APO-1 was found active in broad pH range 7.0-11.5. Organism APO-1 grown well on all the pH studied with clear zone of casein solubilization.

Protease Activity Assay

When the protease is testing digests casein, the amino acid tyrosine is liberated along with other amino acids and peptide fragments. The amount of protease produced was estimated and expressed in microgram of tyrosine released under standard assay conditions. In this assay, casein acts as a substrate. Folin’s reagent primarily reacts with free tyrosine to produce a blue-colored chromophore which is quantifiable and measured as an absorbance value on the spectrophotometer. The more tyrosine that is released from casein, the more the chromophores are generated and the stronger the activity of the protease. From the standard curve the activity of protease samples can be determined in terms of Units, which is the amount in micromoles of tyrosine equivalents released from casein per minute. Micromoles of tyrosine divided by time in minutes yields measurement of protease activity called “units”. The result showed in the micromoles of tyrosine liberated during this particular proteolytic reaction. Alkaline protease activity estimated in culture filtrate of APO-1 with 0.5, 0.7 and 1 ml of enzyme solution was 32.11 U/ml, 40.20 U/ml, and 48.27 U/ml, respectively (Table 2).

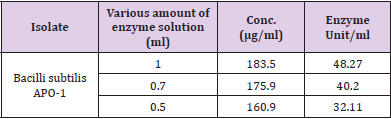

Table 2: Extracellular enzyme production by Bacilli subtilis APO- 1.

Stain Removal and Detergent Compatibility of Crude Enzyme

Cleansing property of protease was checked for the removal of blood stain from the white cotton cloth by mixing the enzyme with detergent solution. Additionally, correlation was established with the commercially available detergents, and results show that introduction of enzyme to the detergent increases the washing performance of the detergent. It was clearly illustrated the cleaning action of APO-1 protease, blood stain was not removed completely with detergent alone, while the mixture of enzyme with commercial detergent removes the blood stain more efficiently. Reflectance measurement showed that about 85-90 % blood stain was removed (Figure 4).

Figure 4: Visual examination of cloth pieces exhibited the effect of enzymes in removal of blood stains.

Discussion

In this study, the microorganism Bacillus Subtilis APO-1 isolated from the soil is evaluated for the alkaline protease production. The protease from this organism is active at alkaline pH so this is alkaline protease. Alkaline proteases are a physiologically and commercially important group of enzymes used primarily as detergent additives. They play a specific catalytic role in the hydrolysis of protein. The capacity of Bacillus strains to produce large amounts of the alkaline protease with high activity recognized them as significant sources of commercial proteases and in this way are excellent candidates for large scale proteases production. Numerous scientists revealed the production of proteases from Bacillus species and their applications in detergent industries [18]. El-Safey and Abdul- Raouf worked on production, purification and characterization of extracellular protease enzyme isolated from B. Subtilis and studied the optimum conditions for maximum protease activity which is comparable to our study [19]. In our study the strain APO-1 has been identified as Bacillus Subtilis on the basis of morphological and biochemical and molecular characterization. Casein was used as the substrate in nutrient agar medium for qualitative analysis and showed maximum zone of activity after overnight incubation. Protease of APO-1 was found active in broad pH range 7.0-11.5. These findings are in accordance with earlier reports showing the optimum pH 10.0-10.5 reported by Banik et al. [20]. The similar results were reported by Genckal and Tari who found novel alkaline protease from alkalophilic Bacillus sp L21 showed optimal stability at pH 11.0 [21].

The protease form Bacillus Subtilis APO-1 gave better result in removal of blood stain from cotton cloth as detergent additives. Numerous investigations exhibited the applicability and suitability alkaline protease in commercial detergents, which served an amazing execution to speed up the cleaning capacity of detergents. Shaikh et al (2018) reported the detergent-compatible alkaline protease from the bacterial strain Bacillus sp. APP-07 isolated from soil [22]. Haddar et al. also reported detergent-compatible protease enzyme from Bacillus mojavensis A21, which exhibited excellent stability in the presence of solid and liquid detergents [3]. Mala et al. also reported biocompatibility of alkaline protease from Bacillus sps. with commercial detergents such as Kite, Tide and Aerial and reported that the enzyme showed 70% activity even after 3 hours [23].

Conclusion

This is first time we are reporting the strain of Bacillus Subtilis capable of producing alkaline protease at pH11.5. This feature is promising for further detail characterization for its large-scale production. The alkaline protease form Bacillus Subtilis APO-1 presented excellent stain removal potential in combination with detergent solution. The blood stain was completely removed from the cotton fabric and might serve several possible applications as detergent additives.

Acknowledgment

None.

Conflict of Interest

None.
