Abstract
Exhaled breath condensate (EBC) analysis is a rapidly growing field of research and may be a useful non-invasive technique to evaluate lung pathology. There is little information in the literature on the safety of collecting these samples in acutely ill infants needing mechanical ventilation. Viral bronchiolitis is a common lower respiratory tract infection contributing to the majority of hospitalizations in children under 2 years of age. The pathophysiology of severe bronchiolitis resulting in ventilatory support is illdefined. Our study objective was to evaluate the tolerability of collection and utility of exhaled breath condensate (EBC) in molecular evaluation of viral bronchiolitis. We obtained proteomic profile of sequential EBCs over three days of illness from two infants who were intubated and ventilated. Mass spectrometry analysis of these samples identified cytokeratin at all time-points and time-dependent increase of proteins related to intracellular adhesions, epidermal morphogenesis, cell repair and differentiation that may be used to monitor the status of epithelial barrier function and integrity of intercellular communication in the bronchiolitis lung in the future. Our pilot study highlights that EBC collection is a well- tolerated procedure to obtain meaningful longitudinal data to profile and study the molecular parameters in acutely ill bronchiolitis infants.
Abbreviations: EBC: Exhaled breath condensate; RSV: Respiratory syncytial virus; IRB: Institutional Review Board, AZGP1: Zinc Alpha 2 Glycoprotein; CASP14: Caspase 14; DCD: Dermcidin; ANXAA1: Annexins A1; ANXAA2: Annexins A2, C1orf68: Chromosome 1 Open Reading Frame 68 Protein of Unknown Function; CSTB: Cystatin B; DSC1: Desmocollin-1; DSG1: Desmoglein-1; FLG2: Filaggrin 2; GAPDH: Glyceraldehyde 3-Phosphate Dehydrogenase; JUP: Junction Plakoglobin, TGM3: Transglutaminase 3; UBA52: Ubiquitin-60s Ribosomal Protein L40
Introduction
Exhaled breath condensate (EBC) analysis is a rapidly growing field of research and may be a useful non-invasive technique to evaluate lung pathology. Several studies have used EBCs to detect inflammatory proteins and biomarkers in various lung pathologies including asthma, cystic fibrosis and Obstructive sleep apnea [1-3]. While this has been established as a promising tool in older children who are awake and can follow instructions to provide exhaled breath condensate, research is limited except for one study [4] that applied this technique to younger infants and those who are mechanically ventilated. In the present study, we report that EBC can be used to capture relevant molecular data representing the course of severe RSV bronchiolitis in hospitalized infants. Bronchiolitis is the most common cause of lower respiratory tract infection during the first year of life, and accounts for the majority of hospital admissions [5- 7]. It is characterized by acute inflammation, edema and necrosis of epithelial cells lining small airways, increased mucus production and bronchospasm” [8].
Respiratory syncytial virus (RSV) is the most common cause of lower respiratory tract infections in young children, though other respiratory viruses can lead to a similar presentation [9]. Up to 3% of children with bronchiolitis are hospitalized and about 1% of them require ICU admission, intubation and are at risk of death. Despite the high hospitalization rate for patients with bronchiolitis, controversy still exists regarding optimal treatment of these patients. The field lacks mechanistic evidence to advance therapeutic options [10-12]. The risk factors for otherwise healthy children who develop severe bronchiolitis requiring mechanical ventilatory support are ill defined.
Methods
The study was conducted in compliance with the protocol approved by the Penn State Hershey Children’s Hospital Institutional Review Board (IRB) (PRAMS00042372), the relevant federal regulations, and IRB policies and procedures. Subjects were identified as infants with clinical diagnosis of acute severe bronchiolitis and who needed intubation and mechanical ventilation and informed consent was obtained from all participants included in the study. Children who were born preterm or experienced prior wheezing episodes, or had prior use of systemic or inhaled corticosteroids, were excluded from the study. EBC was collected in identified subjects within 24 hours of intubation and at 1 day intervals from that point forward until 3 samples were obtained from each subject. Samples were collected using an RTube VENT collection device consisting of valve-less tube structure with a cooling sleeve (Respiratory Research, Inc., Austin, TX) (Figure 1).

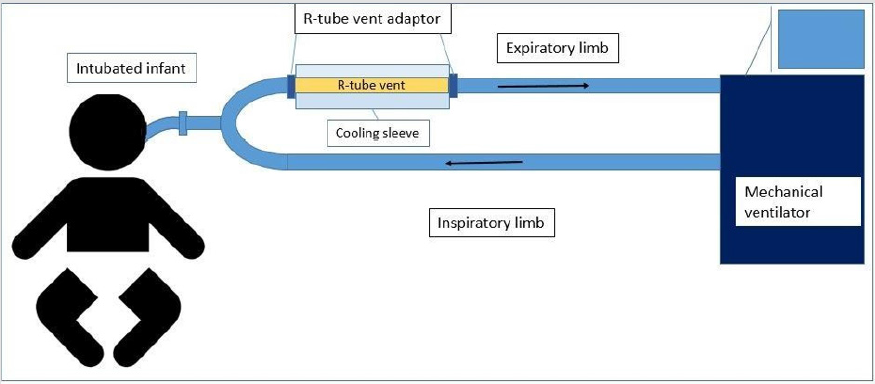

The RTube was connected to the expiratory limb of the ventilatory circuit proximal to the patient to limit the dead space proximal to sample collection by the trained study team. The vital signs and oxygen requirement and ventilator settings were documented by the study team before connecting the RTube and then the R-tube was connected for 15 minutes and then disconnected. Subjects were monitored by respiratory therapists who are oriented and trained throughout the time of sample collection and any significant changes in the patient parameters for during and after sample collection. Subject’s oxygen requirement, ventilator settings and vital signs were recorded before and after each sample was collected. The breath condensate was then aspirated from the RTube and aliquoted immediately to be frozen at -80oC until processing. For mass spectrometry, breath condensates were lyophilized overnight and re-suspended in 20 μL MilliQ H2O.
Proteins were denatured by 200 μL 8M Urea in 0.1 M Tris-HCL, pH 8.5 (urea solution) and trypsin digestion was performed by addition of 4 mg trypsin in 75 μL of 50 mM NH4HCO3 and incubated overnight at 48oC. Peptides were fractionated by LC-MS/MS using an AB SciEX Triple TOF 5600 instrument. Peptide fingerprints were matched against the Swiss-Prot protein database using ProteinPilot 4.5 beta software.
Results

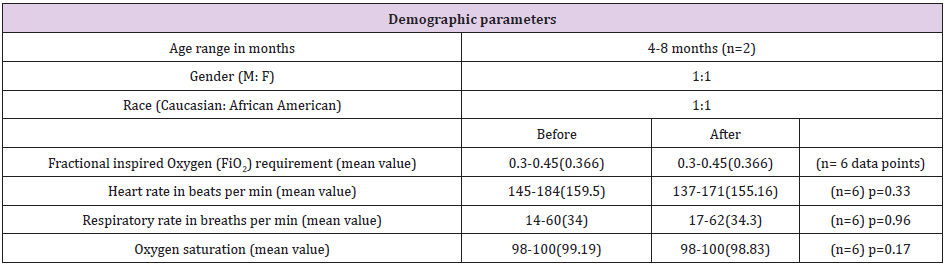

As a feasibility and safety study we collected 6 samples in total from 2 subjects (3 from each) at 24 hour intervals. Both subjects were less than one year of age (4 months and 8 months) and born at full term with no other known comorbidities such as premature birth, congenital malformations or previous history of asthma or use of inhaled or systemic steroids in the past. Both subjects were tested positive for respiratory syncytial virus on analysing their nasopharyngeal aspirates. Approximately 1 ml of EBC in each sample was collected at each sample collection. The subjects tolerated the sample collection via the RTubes with no significant changes in pulse oximeter, supplemental oxygen requirement, heart rate, or respiratory rate during or after sample collection when compared to their baseline profile. Proteomic analysis of the EBC identified over 200 different proteins using Proteinpilot software.
Applying a stringent local false discovery rate (FDR) of >2, approximately 50 proteins (range 23-140) were confidently identified in each sample. Nine proteins, namely HRNR, KRT1, KRT4, KRT5, KRT9, KRT10, KRT14, KRT16, and KRT6A were consistently expressed in samples from both subjects and on all 3 days of sample collection. Expression of these proteins has been consistently documented in various inflammatory conditions such as atopic dermatitis and lung cancer [13-15]. We identified 5 proteins on both days 2 and 3 of intubation but not day 1, Namely Zinc Alpha 2 Glycoprotein (AZGP1), Caspase 14 (CASP14), Dermcidin (DCD), Desmoplakin (DSP), and Lysozyme (LYZ) which have been studied in immune regulation and cellular adhesion [16-18]. There were 12 proteins identified only in the day3 EBC sample in both subjects: Albumin (ALB), Annexins A1 and A2 (ANXA1, ANXA2), Chromosome 1 Open Reading Frame 68 Protein of Unknown Function (C1orf68), Cystatin B (CSTB), Desmocollin-1 (DSC1), Desmoglein-1 (DSG1), Filaggrin 2 (FLG2), Glyceraldehyde 3-Phosphate Dehydrogenase (GAPDH), Junction Plakoglobin (JUP), Transglutaminase 3 (TGM3), Galectin-7 (LGALS7/LGALS7B), and Ubiquitin-60s Ribosomal Protein L40 (UBA52) (Figure 2). These have been implicated in transcriptional signalling and ribosomal biogenesis [19,20].
Proteomic data sets from 3 consecutive days common to both subjects were analysed using the Database for Annotation, Visualization and Integrated Discovery (DAVID) for gene ontology term in order to identify biological processes during RSV infection. The top functional annotation systems in proteins isolated from day 1 samples suggested predominantly epithelial injury and the top functional annotation systems identified from day 2 suggested impairment of epithelial barrier function and intercellular communication. The top functional annotation systems from day 3 suggested that the main functional elements involve tissue repair and cell differentiation (Table 1) However given our small sample size we report this as a trend in pathophysiology.
Discussion
EBC has been used as a non-invasive tool to evaluate lung lining fluid. However, its use has been limited in acutely ill pediatric patients due to the complexity of obtaining the samples. In our study we have demonstrated safe collection of EBC samples from intubated and mechanically ventilated infants with RSV bronchiolitis with no observed cardiorespiratory decompensation. We were able to collect sufficient quantity with good yield of protein in the sample to meaningfully evaluate the underlying lung pathology. Regarding RSV bronchiolitis therapy, there is limited evidence of role for steroids, nebulized epinephrine, helium oxygen or surfactant due to the lack of clear understanding of the underlying causes of the variation in clinical presentation. Our study seeks to evaluate the safety and yield of exhaled breath condensate sampling to analyse inflammatory proteins in acutely ill RSV infected infants. Evaluating serial samples in a time progression design in the same patient could be of value in determining the progression and trajectory of the disease and the readiness for extubation. Our findings offer support for a prospective study on a larger cohort of intubated and mechanically ventilated infants with bronchiolitis, to establish the underlying pathology and progression of the disease.
Acknowledgements
None of the authors have any competing interests in the manuscript. None of the authors have any financial benefits from product developers or manufacturers. This project was funded by Children’s Miracle Network. The authors are grateful to Ms Rachael Mills for reviewing and editing the manuscript.
