Abstract
Abbreviations: ACCP: American College of Chest Physician; IF: Internal Fixation; DHS: Dynamic Hip Screws; MRI: Magnetic Resonance Imaging
Introduction
Osteoporosis is defined as a skeletal disorder characterized
by compromised bone strength predisposing to an increased risk
of fracture. Osteoporosis is a devastating disorder with significant
physical, psychosocial, and financial consequences [1]. Generally,
osteoporotic hip fracture occurring in elderly patient and this is
mainly associated with low energy mechanism; fall from standing
height [2-5]. The incidence of osteoporotic fracture has projected to
increase in worldwide [6-8] and they are associated with morbidity
and mortality [9-11]. So appropriate management for hip fracture
is really important and it should be done by multidisciplinary team
since patient admission until discharge including prevention for
the second fracture. Management in hip fracture is mainly classified
into non-surgical and surgical treatment. Nonsurgical management
is only selected for some patients with severe comorbidities that
they cannot tolerate to surgery. However, they tend to have severe
complication from immobilization including pneumonia and death
within a short period of time.
Therefore, surgery is considered as a first priority for
management in patient sustained a hip fracture. Orthopedic
surgeon should discuss the overall long-term prognosis of possible
decreased mobility and independence as a result of the hip fracture
including risk and benefits between nonsurgical and surgical
treatment. Hip fracture management is generally divided into 3
stages: preoperative, intraoperative, and postoperative stages.
Preoperative Period [12]
Physician should access whether patients take any anticoagulant or antiplatelet use and consider stopping them in elective surgery: American College of Chest Physician (ACCP) clinical practice guideline recommends stopping antiplatelet drugs for a minimum of five days before elective surgery [13]. Withholding warfarin and administration of oral or IV vitamin K is recommended if reversal of the anticoagulant effects of warfarin to permit earlier surgery is deemed appropriate (recommendation B; evidence level 1++ and level 3) [14, 15]. Low-dose vitamin K (1-2.5 mg) administered either intravenously or orally, partially reverses the anticoagulant effect of warfarin over 24 hours [15]. FFP should not be used when there was no contraindication for application of vitamin K. Furthermore, low molecular weight heparin (Fondaparinux) should not be used before surgery because of the increased potential for spinal hematoma after spinal or epidural anesthesia (recommendation A) [16].
A Cochrane review examined the use of traction (both skin and skeletal) applied to the injured leg from the time of admission until surgery. This practice is intended to relieve pain and make subsequent surgery easier. However, there was no evidence of any benefit in pain relief or fracture reduction from the routine use of preoperative traction in hip fracture patients [17]. Intravenous antibiotic prophylaxis should prescribe within 30 minutes before surgical incision in all patients with hip fracture. A meta-analysis found that compared to placebo, antibiotic prophylaxis significantly reduced the overall wound infection, deep wound and superficial wound infection after hip fracture fixation [18].
Intraoperative Period (Surgical Treatment)
Hip fractures are simply divided into 2 groups:
1. Intraarticular fracture (femoral neck fracture) and 2. Extra-articular fracture (intertrochanteric fracture).
Surgical management in the femoral neck fracture is not similar to the intertrochanteric fracture.
Femoral Neck Fracture

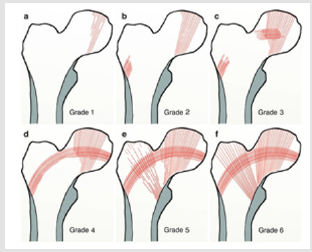

Singh index was used for evaluating trabecular density in osteoporotic severity [19]. The higher trabecular loss is strongly correlated to higher rate of fixation failure (Figure 1). Surgical fixation for femoral neck fracture depends on degree of displacement. In nondisplaced fracture, dynamic hip screw with side plate is not superior outcome than cannulated screws [20] while there are several treatment options for displaced femoral neck fracture (internal fixation, hemiarthroplasty, and total hip arthroplasty) which depends on age group, bone quality, functional demand, cognitive state, and medical comorbidity (for instance cirrhosis, alcoholism, Parkinsonism) [21]. Internal fixation is usually appropriate in young age patients while old age with frailty patients should consider for arthroplasty. A randomized trial demonstrated both internal fixation (IF) and arthroplasty produce similar final outcomes, but IF has a marginally lower mortality at the expense of an increased re-operation rate [22,23]. Generally, patients with preexisting joint disease, medium/high activity levels and a reasonable life expectancy, should have THA rather than hemiarthroplasty as the primary treatment [23,24]. Conversely, displaced femoral neck fracture in relatively low functional demands and lack of preexisting hip arthritis should be suitable for hemiarthroplasty. Four good quality systematic reviews found no evidence of superiority of bipolar implants compared to unipolar prosthesis [23,25-27].
Intertrochanteric Fracture
Surgical fixation for a displaced intertrochanteric fracture has several options [28,29]: Dynamic hip screws (DHS), intramedullary device (PFNA), and angle blade plate. First group is considered in stable type, the second group is suitable for unstable type, and the last group is salvage procedure for prior internal fixation failure.
Postoperative management
Physician should evaluate for risk prevention in many aspects including hip dislocation, infection (surgical site infection, periprosthetic joint infection), deep vein thrombosis, and periprosthetic hip fracture.
1. Hip dislocation can be avoided by external hip protector
[30], extreme hip position precaution.
2. Fall prevention can be managed by ambulation with
assistive device, hip-quadricep-calf strengthening exercise,
evaluate for any associated factors to walking ability including
visual problem, proprioceptive sensation, and environment at
home.
3. Patients without a contraindication should receive
thromboprophylaxis using Fondaparinux for 28 days starting
six hours after surgery. Prolongation of thromboprophylaxis
with fondaparinux for a further 19-23 days reduced the risk
of thrombosis from 35% to 1.4% compared with placebo
(Evidence level 1++) [31].
4. Mechanical prophylaxis should be considered in suitable
patients to reduce the risk of DVT after hip fracture [16].
Cyclic sequential compression and arterial venous (A-V) foot
impulse systems, reduced the risk of DVT by 69% compared to
control.

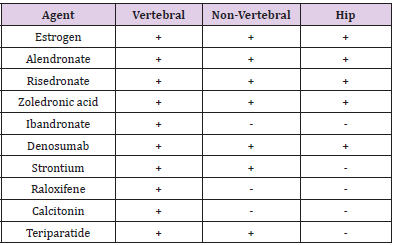

5. Anti-osteoporotic drug should be taken in all patients after
hip fracture surgery guided by Kanis et al [32]. We recommend
prescribing any anti-osteoporotic drug with positive effect to
increase hip bone mass density as shown in (Table 1).
Recently, the American Academy of Orthopedic Surgeons (2015) has published a usefully clinical guideline for hip fracture management into 25 topics (depend on the strength of evidence); 8 topics with strong recommendation, 15 issues with moderate recommendation, and 2 topics with limited recommendation [33, 34]
Strong Recommendation
1 and 2 for preoperative time period, 3 and 4 for surgical technique, and 5 until 8 for postoperative care.
1. Strong recommendation for use of regional anesthesia “unless a clear and compelling rationale for an alternative approach is present”
2. It is no difference of intraoperative pain control including the relative risks and benefits between general anesthesia and spinal anesthesia.
3. Strong evidence supports a benefit to hemiarthroplasty in patients with unstable (displaced) femoral neck fractures.
4. Strong evidence supports a benefit to apply internal fixation with Cephalomedullary nail for Subtrochanteric or Reverse-oblique intertrochanteric fracture.
5. Strong evidence supports a blood transfusion threshold of no higher than 8 g/dL in asymptomatic postoperative hip fracture patients unless a clear and compelling rationale for an alternative approach is present.
6. Intensive physical therapy after hospital discharge is an important issue, with a focus on strength of hip-thigh-calf muscles.
7. Strong evidence supports the use of an interdisciplinary care program in patients with mild to moderate dementia to improve functional outcomes.
8. Multimodal analgesia for decreasing complication from high dose of each drug including minimizing narcotic use to avoid delirium.
Moderate recommendation:
9 until 11 for preoperative time period, 12 until 18 for surgical technique, and 19 until 23 for postoperative care.
1. In case with suspected femoral neck fracture but fracture line cannot be seen from normal radiography, further MRI (Magnetic Resonance Imaging) is useful for confirm diagnosis.
2. Moderate evidence does not support routine use of preoperative traction for patients with a hip fracture. 3. Moderate evidence indicates that hip fracture surgery within 48 hours of admission is associated with better outcomes.
4. Patient with nondisplaced femoral neck fracture (stable type) should be treated by internal fixation.
5. Patient with displaced femoral neck fracture (unstable type) can be treated by unipolar or bipolar hemiarthroplasty.
6. Displaced femoral neck fracture in patients with high functional demand should be treated by Total hip arthroplasty rather than hemiarthroplasty.
7. Cemented femoral stem is a treatment of choice for a displaced femoral neck fracture in elderly patients (seventy years or older) without severe cardiopulmonary compromise [35].
8. Moderate evidence supports higher dislocation rates with a posterior approach [36].
9. Patients with stable intertrochanteric fracture should be treated by internal fixation (either sliding hip screw or cephalomedullary nail).
10. Patients with unstable intertrochanteric fracture should be treated by cephalomedullary nail.
11. Venous thromboembolism prophylaxis should be prescribed in all patients with hip fracture.
12. Aggressive physical and occupational therapy is used throughout the continuum of care, with a focus on improving balance, mobility, functional activity of daily living, strength, and fall prevention.
13. Nutritional supplement should be added in all patients with hip fracture postoperatively because they can reduce mortality rate.
14. Calcium and vitamin D supplement should be added in all patients with hip fracture because they usually have coexisting vitamin D deficiency.
15. All patients with hip fracture should be transferred for outpatient evaluation of osteoporosis because of their high risk of further fragility fractures).
Limited recommendation
1. Limited evidence supports not delaying hip fracture surgery for patients on aspirin and/or clopidogrel.
2. Preoperative albumin and creatinine screening for risk assessment in hip surgery.
