Potential differences between sexes in knee joint biomechanics due to restricted ankle dorsiflexion (DF) may influence the increased prevalence of osteoarthritis (OA) in women. The purpose of this study is to investigate sex differences in the knee adduction moment (KAM) during gait under unrestricted and restricted ankle DF conditions. Forty-nine healthy volunteers (24 men: 21.7 ± 2.5 years old; 25 women: 21.3 ± 1.2 years old) were fitted with a custom-made ankle brace to restrict ankle DF. The ankle DF angle, knee extension angle, and KAM (1st and 2nd halves of the stance phase) were measured during the stance phase while walking. The decrease in the ankle DF angle correlated with an increase in the knee extension angle during the 1st half of the stance phase in both sexes (r=0.52 and 0.61, both p<0.01, respectively). The ankle DF decrease correlated with an increase in the 1st and 2nd KAM only in women (r=-0.50 and p<0.05; r=-0.53 and p<0.01, respectively).Multiple regression analysis revealed that decreases in the ankle DF and knee flexion angle accounted for 24% of the increase in the 2nd KAM in women. Restricted ankle DF was related to an increase in the 1st and 2nd peak KAM in women, but not in men. In particular, the increase in the 2nd KAM in women related to a greater knee extension angle (hyperextension) and a smaller ankle DF angle. The present findings support the use of range of motion exercises to increase ankle DF to reduce KAM and prevent knee OA, especially in women.
Keywords: Ankle Dorsiflexion Angle; Knee Joint Biomechanics; Gait; Terminal Stance; Sex Difference
Abbreviations: DF: Ankle Dorsiflexion; KAM: Knee Adduction Moment; BMI: Body Mass Index; ES: Effect Size
Introduction
Knee osteoarthritis (OA) is a highly prevalent joint disease
among middle-aged and elderly people [1,2]. The prevalence of
knee OA is higher in women than in men [1]. Mechanical stress
(medial compartment contact force) to the knee joint relates to this
prevalence [3,4], and the knee adduction moment (KAM) during gait
is a surrogate value of the medial compression force [5,6]. Based on
longitudinal studies [7-9], higher KAM is a risk factor for medial
knee OA. Several studies report that decreasing the KAM during the
gait is an effective strategy for preventing knee OA [10-13].
On the other hand, a previous biomechanical gait study showed
that restricting the ankle dorsiflexion (DF) angle to ~8° during the
terminal stance increases the KAM and the knee extension angle
(knee genu recurvatum) in healthy adults [14], and suggested that
improving and/or maintaining the ankle DF angle could prevent
medial knee OA. Although some studies report that women have
greater knee joint laxity (hyperextension) compared with men,
potential sex differences in the biomechanical effects due to a
restricted ankle DF were not investigated.
The ankle DF angle is often restricted as a result of an ankle
sprain [15], ankle fracture [16], or Achilles tendon injuries [17]. In
addition, aging may reduce ankle DF, especially in women [18,19].
Women have
1) a high prevalence of medial knee OA [1],
2) age-related decreases in the ankle DF angle [18] and
3) greater knee-joint extension [20-22] compared with men.
Although sex differences may affect the gait mechanism when
the ankle DF is restricted, no studies have yet investigated
the potential sex-related biomechanical effects of reduced
ankle DF during gait. The present study investigated whether
the correlation between restricted ankle DF and knee joint
biomechanics during the gait differs between the sexes,
focusing on the KAM. We hypothesized that a reduced ankle DF
would correlate with an increase in the KAM and a decreased
knee flexion angle (increased knee extension) during the
terminal stance phase, which usually requires ankle DF, to a
greater extent in women than in men.
Methods
Participants
Forty-nine healthy volunteers (24 men and 25 women) participated in the study. Individuals from Nagoya University responded to flyers posted on campus and verbal requests for subjects. Subjects were excluded from participation if they had a current lower extremity injury, knee OA, history of ankle injury, or any medical condition that would affect their ability to perform the study tasks. The Ethics Committee of Nagoya University approved the study, and, after the nature of the study was explained to the participants, all subjects provided written informed consent to participate in the study.
Brace to Restrict Ankle DF
A custom-made ankle brace for the right ankle (Matsumoto P & O Co., Ltd., Komaki, Japan) was used to restrict ankle DF using a dial lock joint (Figure 1) while allowing for unrestricted plantar flexion. The brace was made of Torelac clear material and the lock was adjustable to restrict motion at various degrees of ankle DF. The restricted condition was set to 0° of DF or natural alignment, based on a previous study [14] demonstrating a significantly increased KAM under this condition compared with the unrestricted condition. Ankle DF was examined in the unrestricted condition and restricted condition (restricted to 0°) in a non-weight-bearing state. Subjects wore the ankle brace during the unrestricted condition, but the sagittal plane ankle range of motion was not restricted.
Instrumentation
Three-dimensional kinematic data were obtained using a 7-camera motion analysis system (Vicon Nexus; Vicon Motion System, Oxford, UK). Kinematic data were sampled at 120 Hz and digitally recorded. Ground reaction forces were collected at 120 Hz using custom-made two-piece (left-right) force plates (Kistler Z11942; 2×0.8 m, Z12091; 2×0.4 m; Kistler, Amhurst, NY) embedded in the floor. The motion capture and force plates were temporally synchronized.
Procedures
Data were collected at the gait analysis laboratory at Rosai Rehabilitation Engineering Center. Thirty-five reflective markers (14-mm diameter) were attached to anatomic locations according to the VICON Plug-in Gait marker placement protocol for full-body (35 markers, 15 segments) evaluation. The markers defined the left and right foot, left and right lower legs, left and right thighs, pelvis, thorax, left and right upper arms, left and right forearms, left and right hands, and the head. All subjects wore compression shorts and a swim cap, and females also wore a sport bra. Head, thigh, and pelvic markers (anterior and posterior superior iliac spine) were attached to the clothes. The other markers were attached to the skin. Ankle markers were attached to the heel and lateral malleolus, and 2nd metatarsal head on the skin without attachment to the ankle brace (Figure 1). Therefore, the markers could be kept in the same place under all conditions. Double-sided tape was used to attach all anatomic markers.

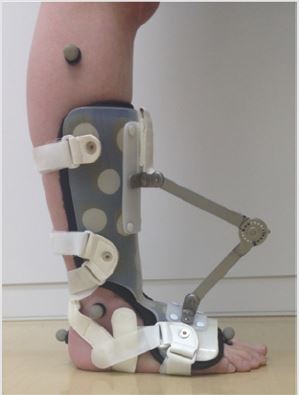

Figure 1: Custom-made ankle brace.
Note: The brace limits ankle dorsiflexion using a dial lock joint to allow for plantar flexion.
Each subject was evaluated in two brace conditions (unrestricted and restricted) in random order. Participants performed the tasks barefoot with only the right foot secured in the brace. Cadence was controlled by a metronome set at the standard pace for Japanese men and women according to a previous report (113 steps/minute and 115 steps/minute, respectively) [23]. Subjects were asked to walk along a 10-m walkway, and three trials under each brace condition were performed. Practice trials allowed subjects to become familiar with the brace.
Data Analysis
The Vicon Plug-in Gait model was used to quantify the ankle
sagittal plane angle, and knee sagittal and frontal plane angles.
Kinematic data were filtered using the Woltring filter with a
predicted mean squared error value of 20. The Plug-in Gait model
was used to define rigid body segments and joint angles between
these segments. The hip joint center was defined using the Davis
method [24]. The knee and ankle joint centers were defined as
the midpoint between the lateral and medial femoral epicondyle
and medial and lateral malleolus, respectively. Euler angles were
used to determine relative segmental motion, and joint angles
were calculated based on segmental motion of the distal segment
about a fixed point on the proximal segment. Ankle DF, knee flexion
(negative value indicates knee hyperextension), and knee adduction
angle were positive. Kinematics, segment masses, and moments
of inertia were used in standard inverse dynamics equations to
calculate the external knee joint moments. External knee flexion
and adduction moments were positive. The knee joint moments
were normalized to body mass.
The right foot data of the stance phase were used in the final
analysis. All data were normalized to 100% of the stance phase. The
biomechanical values used were the peaks of the 1st half (0%-50%)
and 2nd half of the stance phases (50%-100%). The peak ankle DF
angles, peak knee flexion angle during the 1st half, minimum peak
of the knee flexion angle during the 2nd half, peak knee adduction
angles, peak knee flexion moment during the 1st half, negative peak
of the knee flexion moment, and peak knee adduction moments
were measured for the braced (right) limb. For each subject,
dependent variables of interest were identified from each trial and
averaged over three trials.
Intratester reliability of the kinematics and kinetics were
assessed using the intraclass correlation coefficient in the same
measurement setting as described in a previous study [14]. The
KAM, knee adduction angle, knee flexion angle, and ankle DF angle
had an intraclass correlation coefficient ranging from 0.91 to 0.99,
and that of the knee flexion moment was 0.59.
Statistical Analyses
Prior to the analysis, normal distributions were confirmed by Shapiro-Wilk analysis. Differences between the biomechanical data under the unrestricted and restricted conditions were assessed using a paired t-test (normal distribution) or Wilcoxon signedrank test (non-normal distribution). Differences in values between men and women were assessed using an unpaired t-test (normal distribution) or Mann-Whitney U test (non-normal distribution). A p-value of less than 0.05 was considered statistically significant, and effect size (ES) was also determined. The relationship between the changes in ankle DF angle, the KAM, and other biomechanical values with and without restricted conditions was testing using Pearson’s correlation (normal distribution) or Spearman’s ranked correlation (non-normal distribution). All statistical analyses were performed with SPSS, version 16.0 (IBM Japan, Chuo Ward, Tokyo, Japan). Because the brace was only one size, the amount of the ankle DF angle restriction was not the same for each subject. Therefore, the present study investigated the correlation of those biomechanical changes as the main outcome.
Results
Mean (standard deviation) of the age, height, and body mass index (BMI) of all participants were 21.8 ± 2.2 years, 165.2 ± 7.7 cm, and 20.5 ± 1.9 kg/m2, respectively (men: 21.7 ± 2.5 years, 169.6 ± 5.4 cm, and 20.8 ± 1.8 kg/m2, respectively; women: 21.3 ± 1.2 years, 159.2 ± 5.1 cm, and 20.0 ± 1.5 kg/m2, respectively). Age and BMI did not differ significantly between men and women; height in men was significantly higher than in women (P <0.01) Table 1 shows the characteristics and changes in the biomechanical values due to the restricted ankle range of motion during the 1st and 2nd halves of the stance phase, and the sex differences in those values. Figures 2-4 show the ankle DF angle and knee joint biomechanics values under unrestricted and restricted conditions during the stance phase in men and women. Peak ankle DF angles for the unrestricted and restricted conditions were 14.1 ± 4.0° and 6.9 ± 5.3° in men (P < 0.01, ES = 1.52), and 10.1 ± 5.6° and 2.8 ± 4.1° in women (P < 0.01, ES = 1.47). The brace successfully reduced ankle DF during the gait (Table 1).

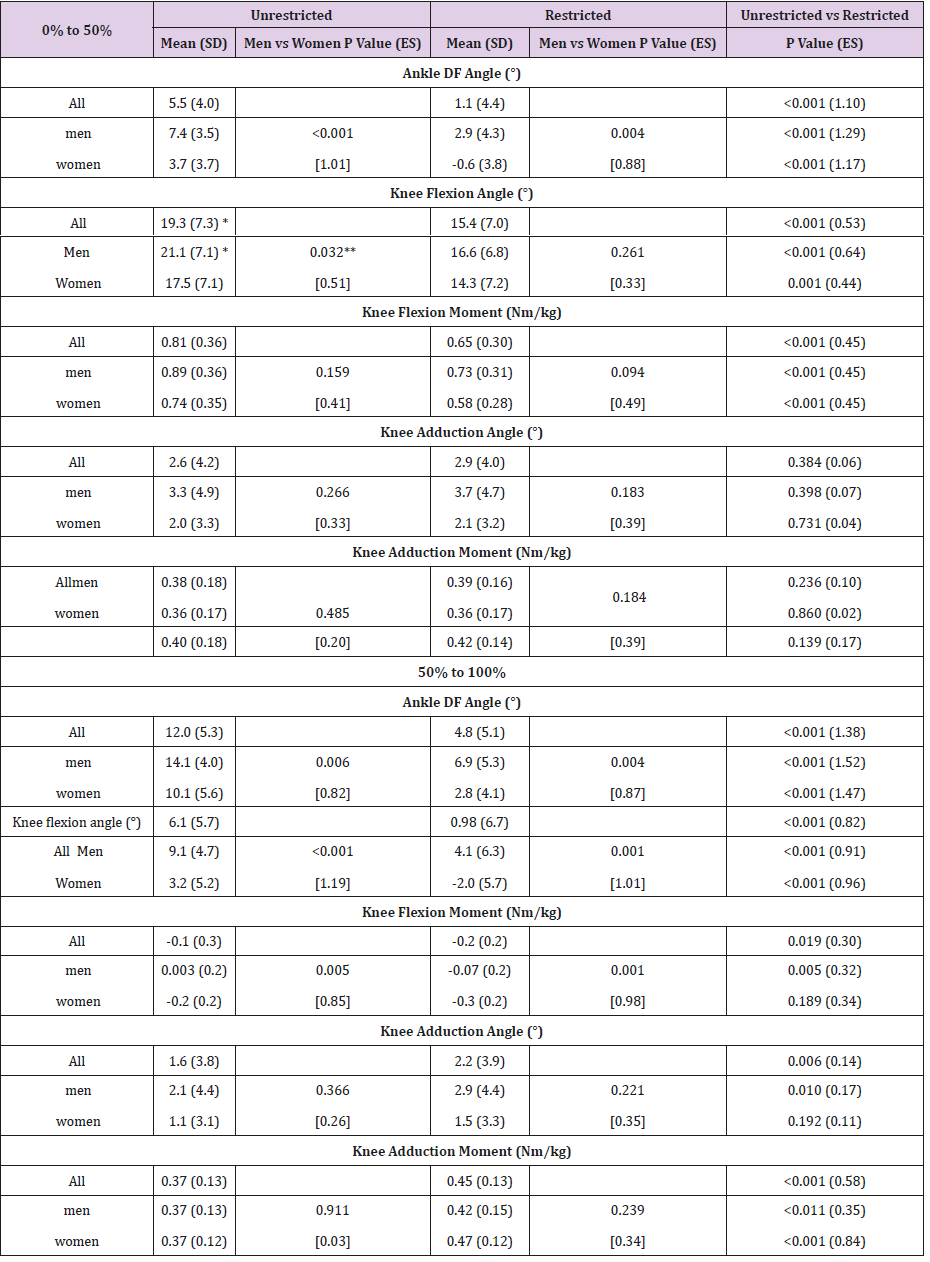

Table 1: Characteristics and changes in biomechanical values due to restricted ankle range of motion during the 1st (0%-50%) and 2nd halves (50%-100%) of the stance phase.
Note: ES, effect size; * Non-normal distribution; ** Mann-Whitney U test
Table 2 shows the correlations among the changes in the ankle DF angle, KAM, and other biomechanical values. A decrease in ankle DF significantly correlated with a decrease in knee flexion angle (decreased knee extension angle) during the 1st half of the stance phase in both men and women (r=0.52 and 0.61, both P<0.01). In the 2nd half of the stance phase, however, the correlation was obtained only in men (r=0.65, P<0.01). On the other hand, the increase in the KAM correlated significantly with reduced ankle DF in both halves of the stance phase only in women (r=-0.50 and P<0.05 and r=-0.53 and P<0.01, respectively). An increase in the KAM also correlated with a decreased knee flexion angle (increased knee extension angle) during the 2nd half of the stance phase in women (r=-0.64, P<0.01).

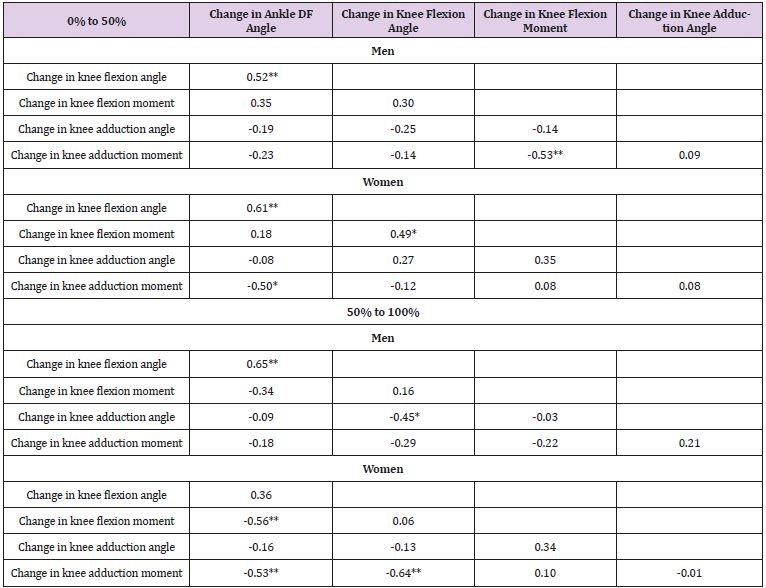

Table 2: Unrestricted and restricted ankle range of motion differences in the correlation coefficients of biomechanical values during the 1st (0%-50%) and 2nd halves (50%-100%) of the stance phase.
Note: *P<0.05; **P<0.01

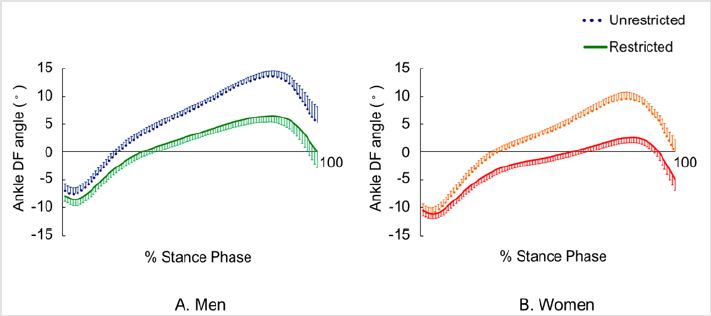

Figure 2: Ankle dorsiflexion angles with standard error bars during stance phase.
Note: A: Men; B: Women. Dotted lines represent the unrestricted ankle dorsiflexion condition. Solid lines represent the restricted ankle dorsiflexion condition.

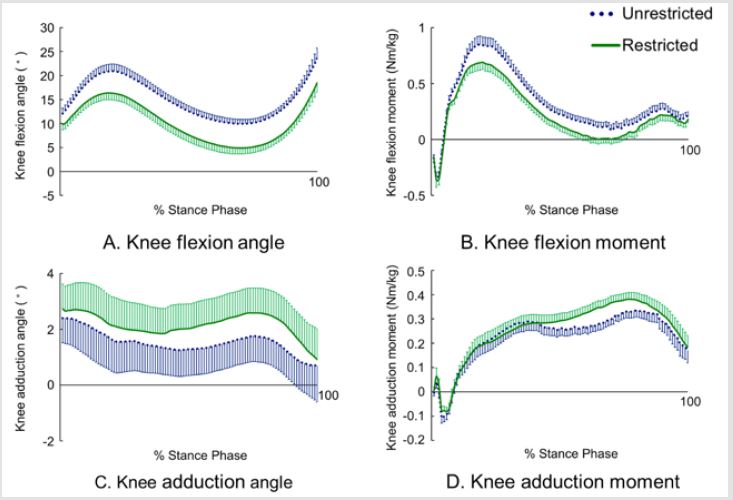

Figure 3: Knee kinematics and kinetics with standard error bars during stance phase in men.
Note: A: Knee Flexion Angle; B: Knee Flexion Moment; C: Knee Adduction Angle; D: Knee Adduction Moment. Dotted lines represent the unrestricted ankle dorsiflexion condition. Solid lines represent the restricted ankle dorsiflexion condition. The X-axes show the percent stance phase of one gait cycle.

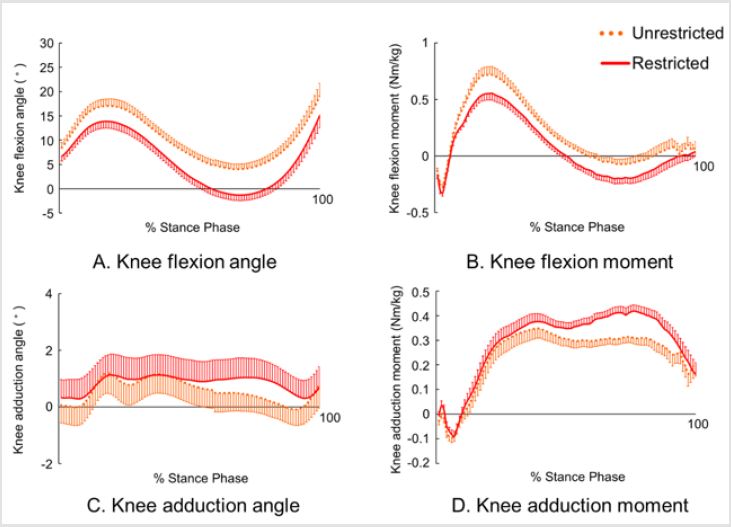

Figure 4: Knee kinematics and kinetics with standard error bars during the stance phase in women.
Note: A: Knee Flexion Angle; B: Knee Flexion Moment; C: Knee Adduction Angle; D: Knee Adduction Moment. Dotted lines represent the unrestricted ankle dorsiflexion condition. Solid lines represent the restricted ankle dorsiflexion condition. The X-axes show the percent stance phase of one gait cycle.
Discussion
The main findings of the present study focusing on the KAM were that restricted ankle DF during the 1st and 2nd halves of the stance phase significantly correlated with an increase in the KAM only in women. In a healthy population, KAM is reported to have two peaks: one at mid-stance and the other at the terminal stance phase [25,26]. A previous study of the relation of ankle DF and KAM investigated the association of ankle DF and KAM during the terminal stance; the findings of the present study confirmed the association between restricted ankle DF angle and the 1st KAM. An ankle DF angle reduction of 4.3° (3.7° to -0.6°) and 7.3° (10.1° to 2.8°) during 1st and 2nd halves of the stance phase increased the KAM by 5% and 27%, respectively. A previous report indicated that approximately 10° of ankle DF is needed during terminal stance with the maximum ankle DF required through the gait cycle [27]. Therefore, the effect of reduced ankle DF on the KAM is thought to be larger during terminal stance (the 2nd half of the stance phase).
In women, the increased KAM in the 2nd half of the stance phase related not only to decreased ankle DF, but also to a decreased knee flexion angle (increased knee extension angle) (Table 2). Because we did not investigate how restricting ankle DF led to an increased KAM, we conducted a multiple regression analysis using the change in the KAM (dependent value) and the change in both ankle DF and the knee flexion angle (independent values) as additional factors. Together, the decreased ankle DF angle and decreased knee flexion angle (increased knee extension angle) explained 24% of the increased KAM in women. The mean knee flexion angle during the 2nd half of the stance phase was -2.0° ± 5.7 ° (Table 1) indicating hyperextension of the knee. Joint laxity in women [20-22] which predisposes women to knee hyperextension, might be the influencing factor of the finding of the increased KAM. Additionally, hyperextension can lead to low proprioception of the knee joint [28], which is assumed to result in poor control of knee joint function and biomechanics.
From these findings, restricting the ankle DF angle in women could affect the knee joint angle, leading to a higher KAM compared with that in men. Previous studies reported that an increase in the KAM is related to progression of medial knee OA [7-9], and the prevalence rate of knee OA is higher in women than in men [1]. Women are particularly predisposed to age-related ankle DF restriction [18]. The present finding might support the use of range of motion exercises to increase ankle DF to reduce the KAM and prevent knee OA, especially in women.
The present study revealed a relationship between decreased ankle DF angle and knee hyperextension during both halves of the stance phase. The 4-5° of restricted ankle DF in the present study led to a 4-5° decrease in the knee flexion angle during the 1st and 2nd stance phases in all participants. Several studies have reported the influence of decreased ankle DF angle on knee hyperextension in mid-stance during the 1st half of the stance phase [27,29,30] Perry [27] described the compensation pattern induced by restricted ankle DF as flat foot with a posteriorly restrained tibia and poor rocker function during the 1st half of the stance phase. This relation in the sagittal plane was observed in the 2nd half of the stance phase in men, but the correlation was not significant in women. In women, angle restriction resulted in a knee flexion angle of -2.0° (i.e., 2.0° of knee extension). We assume that the lack of a significant correlation was due to a ceiling effect for knee hyperextension. Restricted ankle DF due to ankle and subtalar arthrodesis [31] and total ankle replacement [32] result in biomechanical changes to the gait, with the peak ankle DF angle during gait changing from 4.9° and 7°, respectively, to 6.4° and 6° after the operations. The postoperative changes in the ankle DF angle were similar to restriction of the ankle DF angle in the present study. The total ankle replacement decreased the ankle pain, thereby improving walking speed and cadence [32]. The amount of ankle DF obtained for the terminal stance postoperatively was not adequate. The impact of the postoperative decrease in ankle DF and its influence on the knee joint, especially in women, should be considered. The studies did not evaluate other components of the knee joint biomechanics, such as KAM.
The present study has several limitations. The brace was one size and only fitted to the right ankle. The amount of reduction in the ankle DF angle could not be controlled for each subject. Therefore, we evaluated the correlation between a reduced ankle DF and other biomechanical values. We could not determine the amount of the decrease in the ankle DF angle that results in increased KAM for the 1st and 2nd halves of the stance phase. In addition, because the ankle DF restriction was immediate and forced, we could not assess the long-term effects of restricted ankle DF. Finally, a third limitation is that the subjects were all healthy and young, and the effects of restricted ankle DF should also be evaluated in middleaged subjects with a greater prevalence of knee OA.
Conclusion
Restricted ankle DF induced using a custom-made brace correlated with the increase in the KAM during the 1st and 2nd halves of the stance phase in women, but not in men. The increase in the 2nd KAM in women significantly correlated with a decrease in the ankle DF angle and an increase in the knee extension angle. Compared with men, women are more predisposed to an increased KAM due to decreased ankle DF.
