Short CommunicationAbstract
In this present study, the natural occurring switchgrass (SG) is used as a reinforcement in the epoxy resin. The obtained SG is cut into small sizes with dimension ranging between 2 and 5 cm and without any chemical treatment is directly reinforced in epoxy resin at different weight fractions, to prepare lightweight composites. The SG-epoxy composites show 50% and 28.5% increase in tensile modulus and strength respectively. These modified properties of SG-epoxy composites have the potential for further use as a structural composite.
Introduction
In the present era, lightweight composites are in great demand in various applications such as automobile, aerospace, as well as in recreational industries to enhance the efficiency and performance. Conventional carbon-based fillers including carbon nanotube [1,2], graphene [3], POSS [4-6] shows modification in epoxy-based composites, however, these fillers are expensive and hazardous to the environment. Recently, researchers are modifying composites using naturally occurring biodegradable materials such as jute or flax [7-12]. However, the cost of these materials is high thereby limiting the supply of these materials. In contrast, switchgrass (SG) is a self-seeding crop that can grow on small lands and also it requires low-input in terms of water and fertilizer to grow [13,14]. The advantage of using SG include less production costs and development of environmentally friendly products. There are only few studies where composites are reinforced with SG or where SG was used as a filler to enhance the properties of polypropylene [15].
The objective of this study is to employ untreated SG as a reinforcement in epoxy composites and to study its influence on the mechanical properties.
Experimental
Materials
SG was obtained from a research field at the University of Tulsa Campus. SG stems were manually separated from the mature crops. The stem was cut in the size between 2-5 cm. The tensile properties of regular SG is given below:
Tensile strength: 105 ± 21.2 MPa
Tensile modulus: 17.2 ± 2.6 GPa
EPON 828, a diglycidyl ether bisphenol A based resin, and EPIKURE 3115, a polyamide based, curing agent was procured from Hexion (Houston, TX, USA).
Fabrication
Mixing of epoxy resin and SG were carried out in a magnetic stirrer at 50°C at 200 rpm for 12 hr. The mixture was then cooled to room temperature and stoichiometric amount of amine-based curing agent (by 120% wt. of epoxy) was added followed by mixing for an additional 10 min. The mixture was then placed in a vacuum chamber for 15 minutes to remove gas bubbles hat may be introduced during mixing. Thereafter, the mixture was poured into an aluminum mold for casting, and cured at 100 C for 1 hr. The wt.% of SG in the epoxy resin varied from 0 to 25 wt.%. The same procedure was used for preparing neat epoxy for comparison.
Characterization
The elastic modulus of the SG–epoxy nanocomposites was determined as per ASTM D–638 [16]. Samples were machined from cast plate with nominal dimension for Type 1 as per ASTM standard. Extensometer was placed within the gauge length to record the accurate strain measurement. Specimens were loaded in a displacement-controlled mode until failure, where the point of failure was identified from the peak load, P. The elastic modulus was determined from the stress-strain curve.
Results and Discussion
As shown in (Figure 1) we can clearly observe that inclusion of switchgrass increases the tensile strength. This increase in the strength is due to the higher elastic strength of SG compared to neat epoxy. The maximum value of strength was observed at 10 wt.% SG inclusion with an increase of 28.5% compared to epoxy resin. However, with increase in the value of SG in the epoxy resin the density of void increases due to lack of affinity between epoxy resin and SG. This increase in the void deteriorates the composites hence reduces the tensile strength.

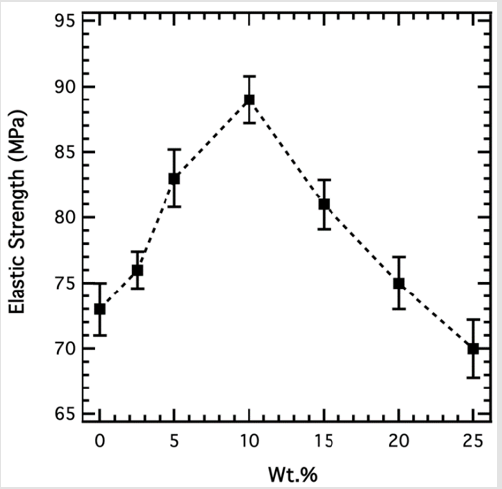

Figure 1: Variation in elastic strength of the composite as a function of SG content.
(Figure 2) illustrates the change in elastic modulus with the inclusion of SG at different wt. fractions. This is due to the higher modulus value of SG stem. We observed that 10wt. % of SG reinforcement increases the modulus value by 50 % compared to neat epoxy. Nonetheless, increasing the SG content more than 10 wt. % deteriorates the material and hence reduction in the modulus value was observed.
Figure 2: Changes in elastic strength as a function of wt. % of SG.
Conclusion
In this study we have used natural occurring fiber, switchgrass, as the reinforcement in epoxy composites. We have cut the grass into small size of 2-5 mm using precision cutter. The reinforcement of SG shows increase in the value of tensile strength and modulus by 28.5% and 50%, respectively, compared to the neat resin at 10 wt.% inclusion. This increase in the tensile value is due to the higher tensile strength and modulus of the SG. Results shows that these naturally occurring inexpensive fiber can be used in composite to modify the properties for applications in various fields. Further investigation on chemical treatment of these SG is required to enhance its affinity with the epoxy resin and for further improvement in the properties.
